G1214TADf
Rail-to-Rail I/O, High-Slew-Rate OP Amp
G1214 is a input/output rail-to-rail Operational Amplifier. It can be operated from +2.2V to +7V single supply or from ±1.1V to ±3.5 dual supply. G1214 can drive 66mA into resistor loads to within 10% power rail. AC performance is very excellent with 6.5MHz bandwidth, 6.5V/µs Slew Rate, 95dB open loop gain, 60 degree phase margin and low distortion.
檔案下載
規格表
|
VDD (V)
|
min.
|
2.2 |
|---|---|---|
|
max.
|
7 | |
|
CH
|
1 | |
|
IOUT
|
(mA)
|
66 |
|
S/R
|
(V/µs)
|
6.5 |
|
BW
|
(M Hz)
|
6.5 |
|
Offset
|
(mV)
|
5 |
|
Note
|
Rail-to-Rail Input/Output | |
|

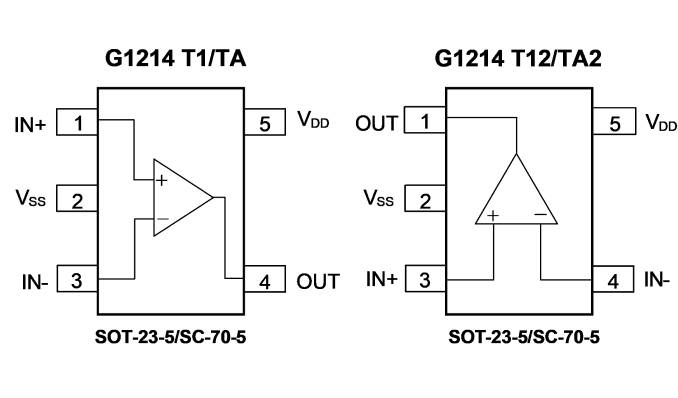

Package
|
SC-70-5 | |
|
Datasheet
|
EDS-1214-090-2.4-150304.pdf | |
