G1362AA71G
General Purpose, Low Voltage Dual Comparators
The G1362 consists of two independent low voltage comparators with open-drain outputs. The G1362A consists of two independent low voltage comparators with push-pull outputs. They are guaranteed to operate from 1.2V to 5.5V power supply. The current consumption is as low as 26μA at 3V supply voltage. So it is very suitable for portable electronic devices applications.
檔案下載
規格表
|
VDD (V)
|
min.
|
1.2 |
|---|---|---|
|
max.
|
5.5 | |
|
CH
|
2 | |
|
IQ
|
(uA)
|
26 |
|
TPHL
|
(ns)
|
300 |
|
TPLH}
|
(ns)
|
300 |
|
Offset
|
(mV)
|
7 |
|
Note
|
Push-Pull Output | |
|

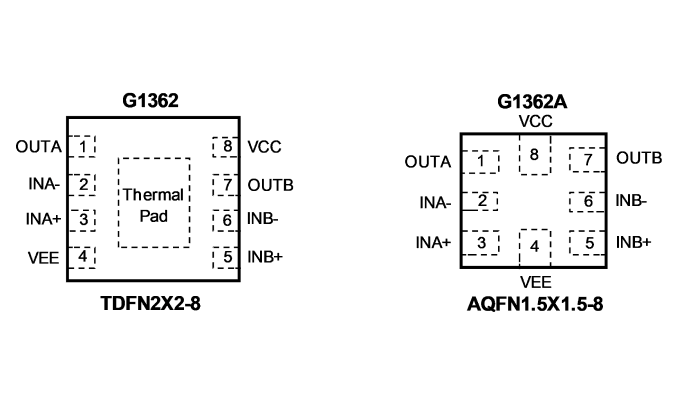

Package
|
AQFN1.5X1.5-8 | |
|
Datasheet
|
EDS-1362(1362A)-1576-210615-0.5.pdf | |
