G2015K21U
Constant current type 1-CH H-bridge driver IC
G2015 is a constant current type 1-CH H-bridge driver IC with small package (TDFN2X2-10). It is one channel CC/FS with H-bridge motor driver IC. It is suitable for camera module application for DSC and Mobile phone.
檔案下載
規格表
|
VCC (V)
|
min.
|
2.5 |
|---|---|---|
|
max.
|
5.5 | |
|
VM (V)
|
min.
|
2.5 |
|
max.
|
5.5 | |
|
CH
|
1 | |
|
Built-in PI
|
-- | |
|
Exterior Control
|
Y | |
|
nFAULT
|
-- | |
|
Note
|
Single H-Bridge Motor Driver, ±0.2A Output Current | |
|

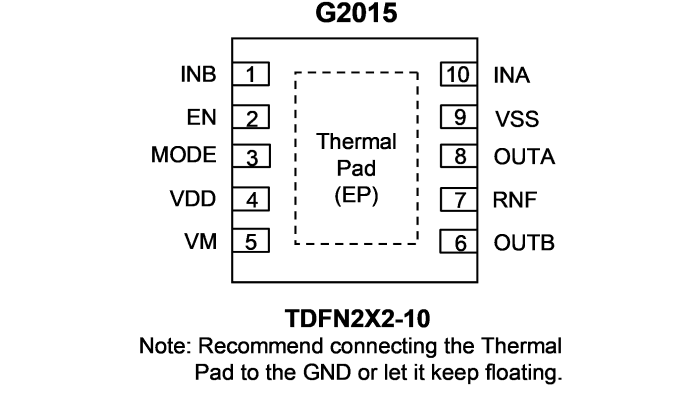

Package
|
TDFN2X2-10 | |
|
Datasheet
|
EDS-2015-1151-221128-0.5.pdf | |
