G2069Q41U
Low voltage stepper motor driver
The G2069 is a stepper motor driver which integrates, in a small QFN3X3-16 package, both control logic and a low RDS (on) power stage.
檔案下載
規格表
|
VCC (V)
|
min.
|
-- |
|---|---|---|
|
max.
|
-- | |
|
VM (V)
|
min.
|
1.8 |
|
max.
|
10 | |
|
CH
|
2 | |
|
Built-in PI
|
-- | |
|
Exterior Control
|
Y | |
|
nFAULT
|
Y | |
|
Note
|
256 steps Micro-Stepping,1.3A SCP/OCP/OTP | |
|
Package
|

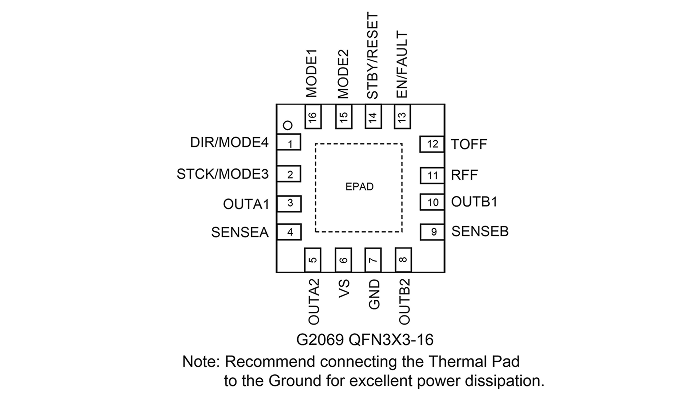

QFN3X3-16 | |
|
Datasheet
|
EDS-2069-1644-191128-0.1.pdf | |
