G2129AE1U
1-2-4-Bit Bidirectional Voltage-Level Translator with Automatic Direction Sensing and ±15kV ESD Protection

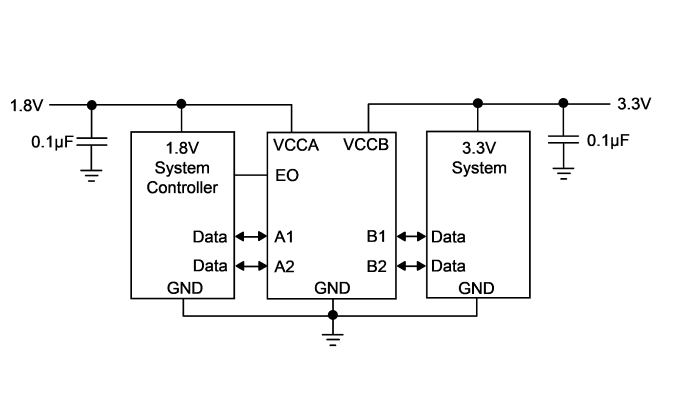

This 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from
1.65V to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. VCCA should not exceed VCCB.
1.65V to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. VCCA should not exceed VCCB.
檔案下載
規格表
|
VDD (V)
|
min.
|
1.2 |
|---|---|---|
|
max.
|
5.5 | |
|
CH
|
1-2-4 | |
|
VHIGH
|
(V)
|
5 |
|
VLOW
|
(V)
|
1.2 |
|
Data Rate
|
(Mbps)
|
100 |
|
Charge
|
Sharing
|
-- |
|
Note
|
1-4-Bit Bidirectional Level Shift,Push-Pull I/O, Data rate 100Mbps | |
|

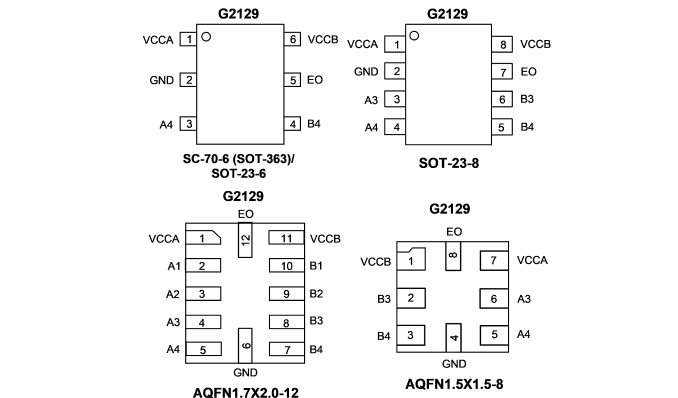

Package
|
AQFN1.7X2.0-12 | |
|
Datasheet
|
EDS-2129-1132-151215-0.6.pdf | |
