G2132K21U
Photoflash Capacitor Charger for DSC
The G2132 is a charger IC for Photoflash capacitor with soft-start function, an IGBT driver for igniting flash tube, adjustable output voltage and adjustable primary peak current to perform energy transition on each charge cycle. The output voltage is determined by voltage divider connecting to the anode of the rectifying diode. The voltage sensing path is cut off when charging function to be completed to maintain minimum output voltage decay. It also provides SCP function for the voltage divider open or output short.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.9 |
|---|---|---|
|
max.
|
5.5 | |
|
LX
|
(V)
|
55 |
|
VOUT
|
ADJ | |
|
IGBT Driver
|
Y | |
|
Built-in
|
OVP
|
Y |
|
MOSFET
|
Y | |
|
Note
|
Transformer Kickback, Slow Charge,Separate Source & Sink Pin of IGBT Driver | |
|

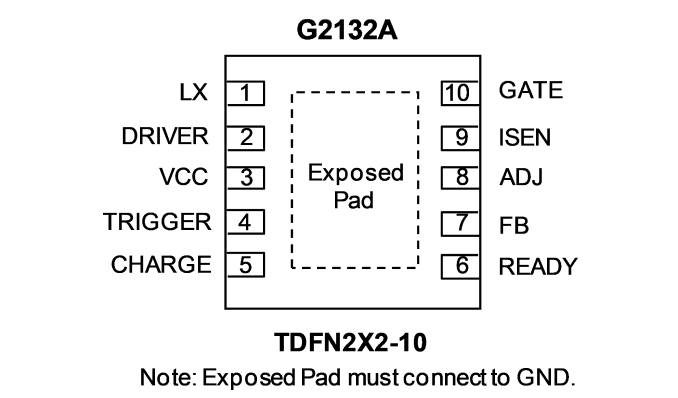

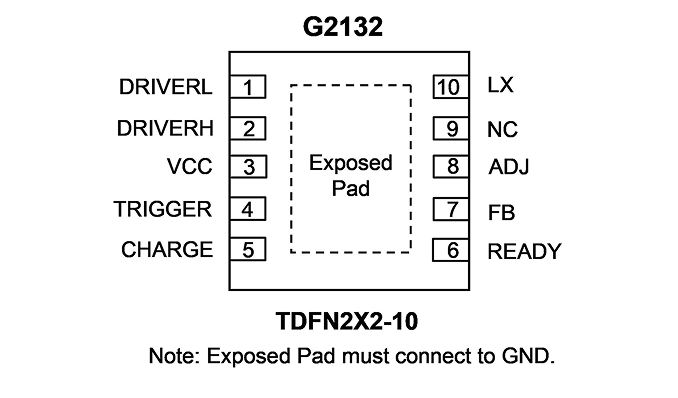

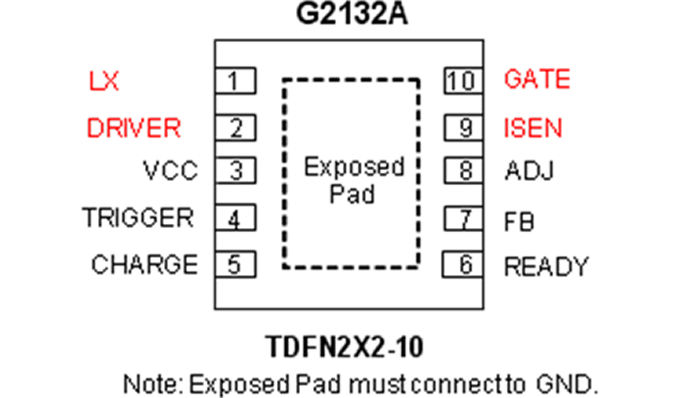

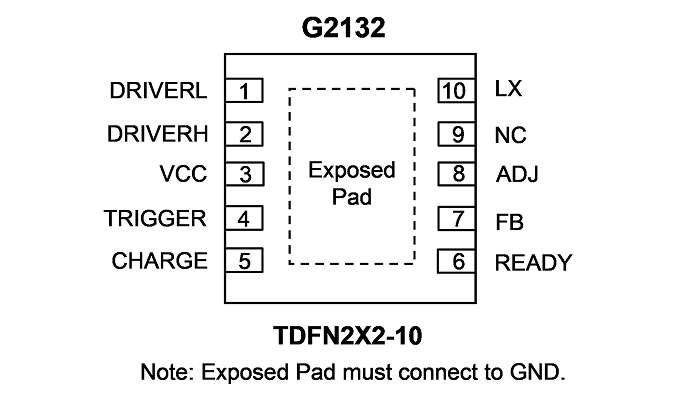

Package
|
TDFN2X2-10 | |
|
Datasheet
|
EDS-2132-1179-150423-0.5.pdf | |
