G2156K11U
4 Channels, High Efficiency, Synchronous Step Down
The G2156 device features four synchronous 5.5V input range high efficiency buck converters. The converters are designed to simplify its application while giving the designer the option to optimize their usage according to the target application.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.95 |
|---|---|---|
|
max.
|
6 | |
|
DCDC
|
CH
|
4 |
|
LDO
|
CH
|
-- |
|
SW
|
CH
|
-- |
|
CHG
|
(A)
|
-- |
|
Control
|
Interface
|
MODE ENx VSETx |
|
Note
|
CH1~4=3A/1A/1A/1A, CH1_Dmax=90%,CH1 supports DVS 1.05/1.15/1.25/1.31V,Built power sequence control,EN1~4, SS, PG | |
|
Package
|

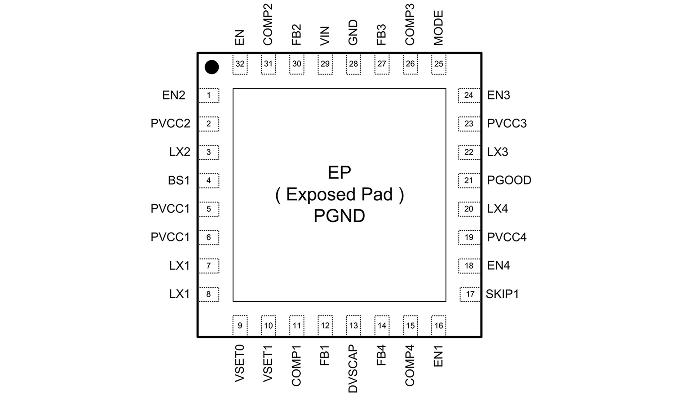

TQFN4X4-32 | |
|
Datasheet
|
EDS-2156-1206-180809-0.9.pdf | |
