G2176RB1U
Power-Distribution Switches with Soft Start

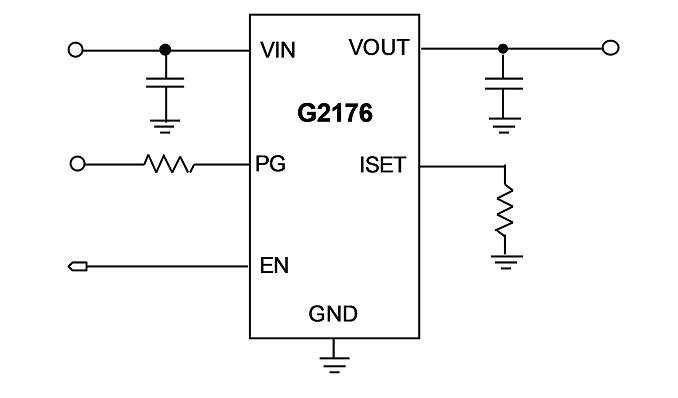

The G2176 is a power-distribution switch with some protection functions. The device incorporates an 80m N-channel MOSFET power switch that is controlled by an enable logic pin and has a built-in soft-start control that can be used in application where the inrush current is concerned.
檔案下載
規格表
|
Vin (V)
|
min.
|
4.5 |
|---|---|---|
|
max.
|
22 | |
|
RON
|
(mΩ)
|
70 |
|
VOUT Rising
|
(ms)
|
VIN/4 |
|
IOUT
|
(A)
|
ADJ |
|
Flag
|
N | |
|
Dis-R
|
(Ω)
|
950 |
|
Note
|
UL, IEC, CB, OC & OT Latched OFF mode | |
|

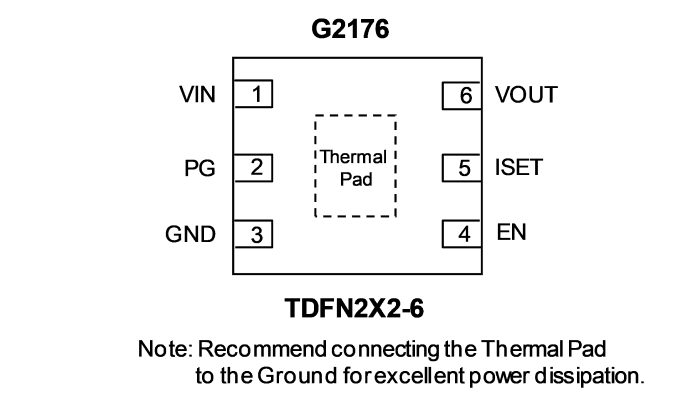

Package
|
TDFN2X2-6 | |
|
Datasheet
|
EDS-2176-1516-240613-0.8.pdf | |
