G2225RV1U
4+2CH PMU for Wearable / Sports-CAM & IP-CAM Application
The G2225 provide a complete power supply solution for wearable / sports-cam & IP-CAM application. It contains four dc/dc converters, one power switch and one low quiescent current LDO to power each critical blocks of the system, and is optimized for maximum battery life, featuring a low ground current when in standby mode operation. All channels DC/DC converters operate at selectable frequency of 1.5/3.0MHz to optimize size, cost, and efficiency. All Synchronous converters operate at pulse skipping mode at light load.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.8 |
|---|---|---|
|
max.
|
5.5 | |
|
DCDC
|
CH
|
4 |
|
LDO
|
CH
|
1 |
|
SW
|
CH
|
1 |
|
CHG
|
(A)
|
-- |
|
Control
|
Interface
|
ENx, SEQ |
|
Note
|
DCDC1/3=3.5A/2.5A, DCDC2/4=2A,FSEL Fsw=1.5M/3M Hz, SW Ron 350mΩG2225 RTCLDO=3.1/50mA, G2225A RTCLDO=1.8/50mA | |
|

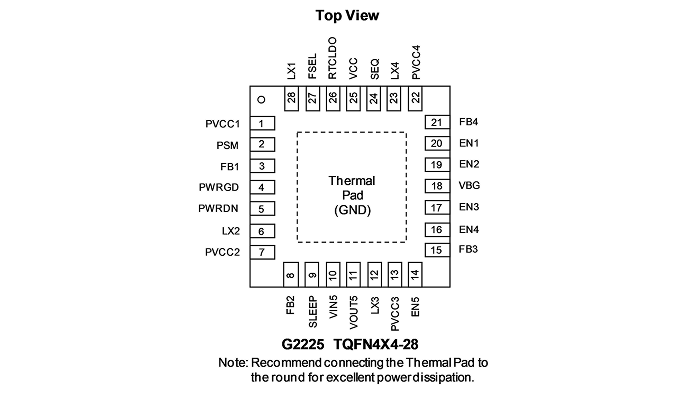

Package
|
TQFN4X4-28 | |
|
Datasheet
|
EDS-2225-1312-240709-0.8.pdf | |
