G2228CD1U
High Efficiency Single Inductor Auto Buck-Boost Converter
The G2228 is a high efficiency single inductor Buck- Boost converter which can supply the load current up to 1.5A. It provides auto-transition between Buck and Boost Mode. The G2228 operates at 2.4MHz switching frequency in CCM. DC/DC converter operates at Pulse-Skipping Mode at light load. The output voltage is programmable using an external resistor divider, or is fixed to 3.3V internally. The load is disconnected from the VIN during shutdown.
檔案下載
規格表
|
Vin (V)
|
min.
|
1.8 |
|---|---|---|
|
max.
|
5.5 | |
|
Vo (V)
|
min.
|
2.8 |
|
max.
|
5.5 | |
|
IOUT
|
(A)
|
1.5 |
|
FSW
|
(M Hz)
|
2.4 |
|
FB
|
(V)
|
0.5 |
|
Note
|
Auto-Transition Buck and Boost Mode | |
|

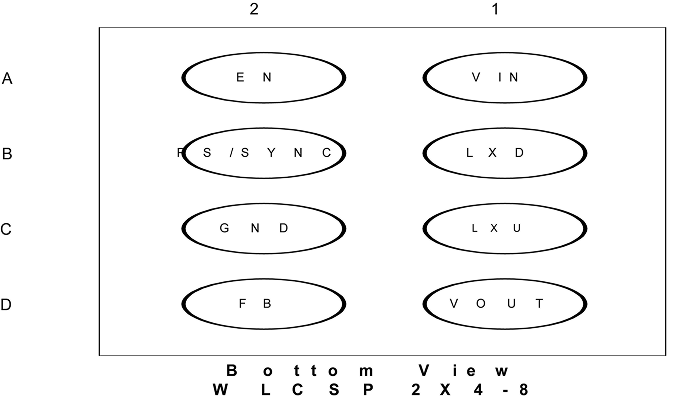

Package
|
WLCSP2X4-8 | |
|
Datasheet
|
EDS-2228-1340-180517-0.4.pdf | |
