G2518KK1U
Integrated Power Supply for TFT-LCD
The G2518 include a AVDD boost converter, two buck converters, a VGH boost converter, two VGL negative charge pumps, a LDO regulator, a programmable VCOM generator with one high-speed amplifier, a high-speed operation amplifier, a gate voltage shaping function.
檔案下載
規格表
|
Vin (V)
|
min.
|
5 |
|---|---|---|
|
max.
|
4.5~11 | |
|
AVDD
|
(V)
|
4.5~11 |
|
VGH
|
(V)
|
10~37 |
|
VGL
|
(V)
|
-11~-4.4 -18~-4.4 |
|
Buck
|
(V)
|
0.8~2.8 1.0~2.8 |
|
LDO
|
(V)
|
1.0~2.8 |
|
OP
|
(CH)
|
2 |
|
Note
|
AVDD Sync-Boost, VGH Boost, NTC,VGL Charge-Pump*2, Sync-Buck*2, Reset, DVCOM, GPM, I2C | |
|
Package
|

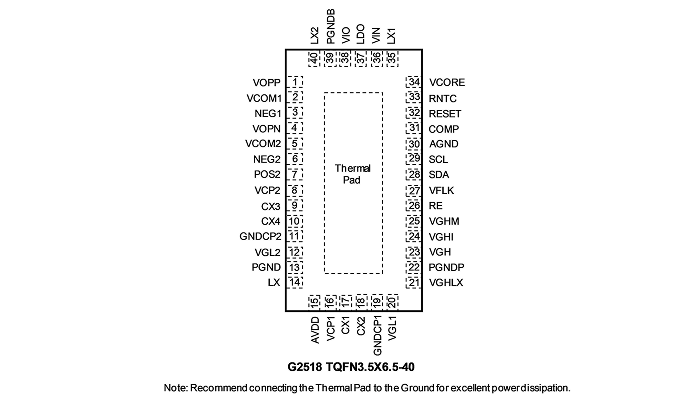

TQFN3.5X6.5-40 | |
|
Datasheet
|
EDS-2518-1391-230509-0.9.pdf | |
