G2986K21U
LPDDR2/LPDDR3/DDR4 Termination Regulator

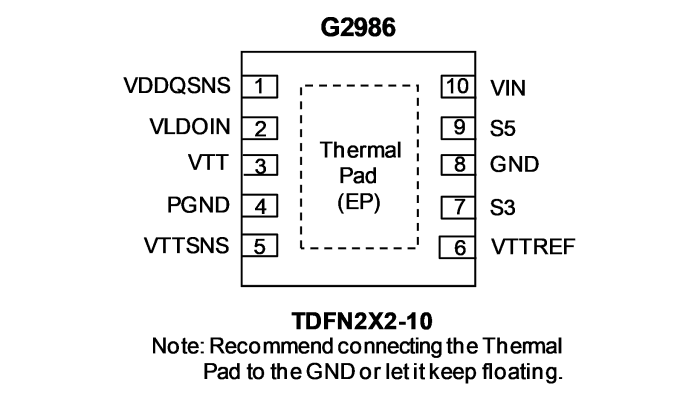

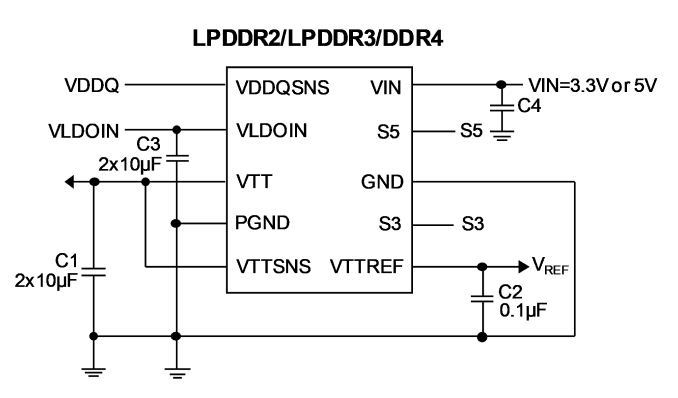

The G2986 is a 3A sink/source tracking termination regulator. It is specifically designed for low-cost/ low-external component count systems. The G2986 maintains a high speed operational amplifier that provides fast load transient response and only re-quires 20µF (210µF) of ceramic output capaci-tance. The G2986 supports remote sensing func-tions and all features required to power the LPDDR2 /LPDDR3/DDR4 /DDR 3L VTT bus termi-nation according to the JEDEC specification. In addition, the G2986 includes integrated sleep-state controls placing VTT in High-Z in S3 (suspend to RAM) and soft-off for VTT and VTTREF in S5 (Shutdown). The G2986 is available in the thermally efficient TDFN2X2-10.
檔案下載
規格表
|
VDDQ (V)
|
min.
|
1.1 |
|---|---|---|
|
max.
|
3.6 | |
|
Isource
|
(A)
|
4 |
|
Isink
|
(A)
|
4 |
|
IVREF
|
(mA)
|
10 |
|
VCNTL
|
(V)
|
3~5.5 |
|
EN
|
S3/S5 | |
|
Note
|
DDR1/2/3/4/3L, LPDDR2/3 | |
|
Package
|
TDFN2X2-10 | |
|
Datasheet
|
EDS-2986-1031-1.5-200313.pdf | |
