G3204D61U
Quad 10 SPDT Analog Switch

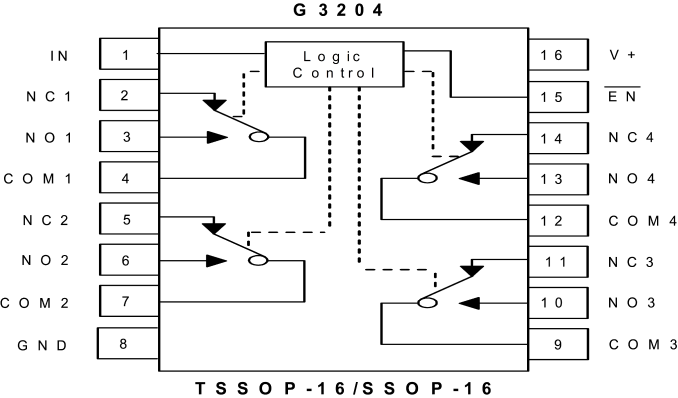

The G3204 is a quad low on-resistance, SPDT (Single-Pole/Double-Throw) analog switch that operates from a 2.3V to 5.5V supply. The device offers an excellent ON-resistance matching, and low total harmonic distortion (THD) performance. These features make this device suitable for portable audio applications.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.3 |
|---|---|---|
|
max.
|
5.5 | |
|
RON
|
(Ω)
|
10 |
|
BW
|
(M Hz)
|
230 |
|
TON
|
(ns)
|
5 |
|
TOFF
|
(ns)
|
4.5 |
|
ISUPPLY
|
(uA)
|
1 |
|
Note
|
Quad SPDT | |
|
Package
|
TSSOP-16 | |
|
Datasheet
|
EDS-3204-379-081112-0.4.pdf | |
