G3712B61U
USB PD and Type-C Power Switch
The G3712 is a precision adjustable current-limited power switch for USB PD application. The device is equiped with UVLO and OT protection. VBUS pin can stand 29V ensures the device is able to work on a USB PD port; ILIM pin defines the over-current limit threshold; pin indicates when a fault condition has occurred.
檔案下載
規格表
|
Vin (V)
|
min.
|
4 |
|---|---|---|
|
max.
|
5.5 | |
|
RON
|
(mΩ)
|
35 |
|
VOUT Rising
|
(ms)
|
2 |
|
IOUT
|
(A)
|
ADJ |
|
Flag
|
Y | |
|
Dis-R
|
(Ω)
|
-- |
|
Note
|
UL, IEC, CB, Type-C, Fast role swap,VBUS Voltage Tolerance 29V | |
|
Package
|

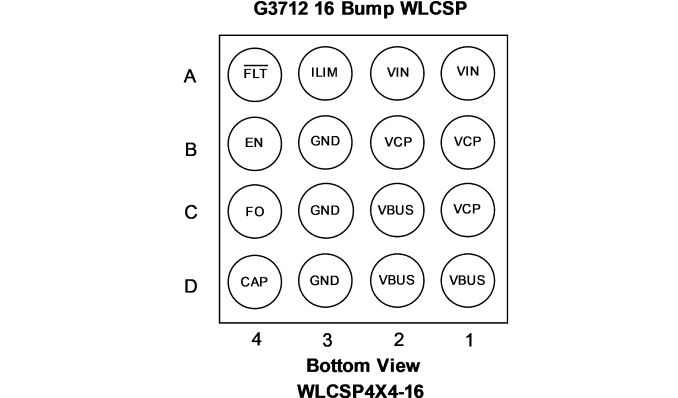

WLCSP4X4-16 | |
|
Datasheet
|
EDS-3712-1533-210122-0.7.pdf | |
