G5029ARC1D
Single Low Ron Load Switch with Soft Start

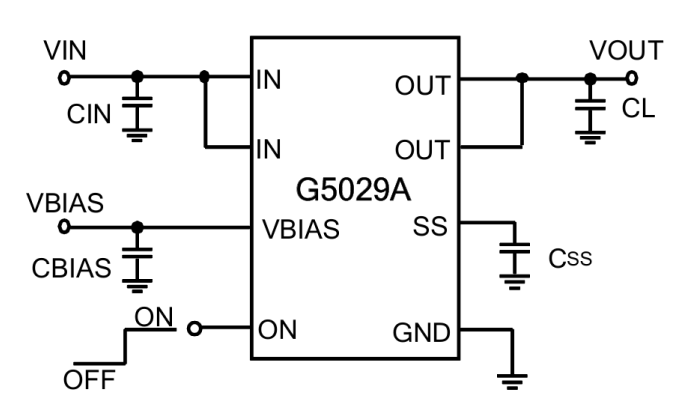

The G5029A is a single channel load switch with typical 22m on-resistance in a small package. It contains an N-channel MOSFET for up to 5.5V input voltage operation and 4A current channel with 2.5V to 5.5V bias supply. The load switch is independently controlled by a low voltage control signal through ON pin.
檔案下載
規格表
|
Vin (V)
|
min.
|
0.9 |
|---|---|---|
|
max.
|
5.5 | |
|
RON
|
(mΩ)
|
22 |
|
VOUT Rising
|
(ms)
|
ADJ |
|
IOUT
|
(A)
|
-- |
|
Flag
|
N | |
|
Dis-R
|
(Ω)
|
220 |
|
Note
|
Need a 5V VBIAS, @VOUT=1.05V | |
|
Package
|

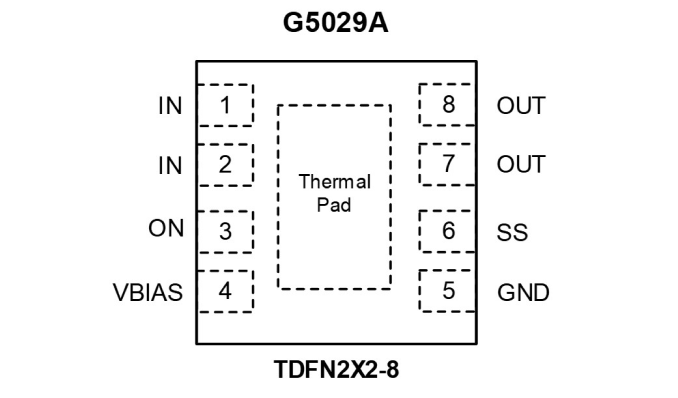

TDFN2X2-8 | |
|
Datasheet
|
EDS-5029A-1475-1.0-250703.pdf | |
