G5031Q51D
12-Channel, 16-Bit, Enhanced Spectrum, PWM, RGB, LED Driver with 3.3-V Linear Regulator
The G5031 is a 12-channels, constant-current sink driver, which is designed for RGB LED cluster lamp applications using internal Pulse Width Modulation (PWM) control with 16-bit color depth. Each output channel has individually adjustable currents with 65536 PWM grayscale (GS) steps. Also, each color group can be controlled by 128 constant-current sink steps with the global brightness control (BC) function. GS control and BC are accessible via a two-wire signal interface. The maximum current value for each channel is set by a single external resistor. All constant-current outputs are turned off when the IC is in an over-temperature condition.
檔案下載
規格表
|
Vin (V)
|
min.
|
6 |
|---|---|---|
|
max.
|
17 | |
|
IOUT
|
(mA)
|
60 |
|
FOSC
|
(k Hz)
|
-- |
|
LED
|
CH
|
12 |
|
Positive
|
V[O] (V)
|
-- |
|
Negative
|
V[O] (V)
|
-- |
|
Note
|
Grayscale Control 16-Bit(65,536-Step),Global Brightness Control 7-Bit, 3.3V Regulator, RGB LED application | |
|

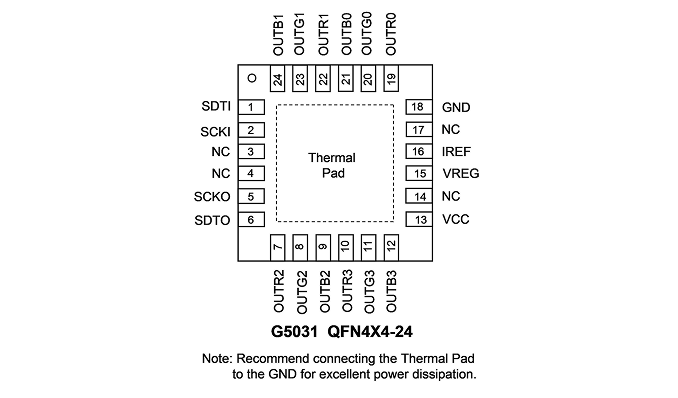

Package
|
QFN4X4-24 | |
|
Datasheet
|
EDS-5031-1251-200505-0.2.pdf | |
