G5110RE1U
600k/1.2MHz TFT-LCD Step-Up DC-DC Converter

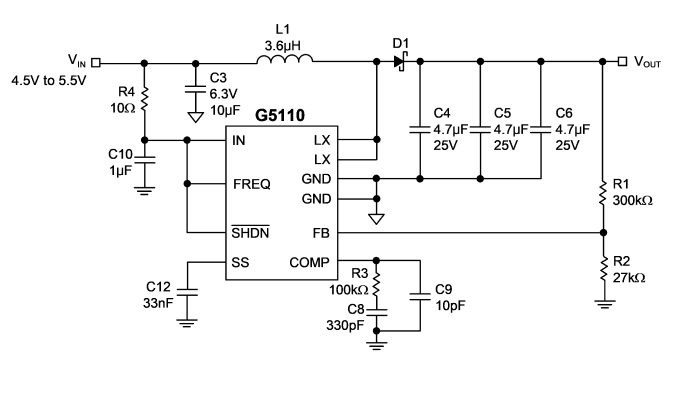

The G5110 boost converter incorporate high-performance, current-mode, and frequency selectable pulse width modulation (PWM) circuitry with a built-in N-channel MOSFET to provide a highly efficient regulator.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.5 |
|---|---|---|
|
max.
|
5.5 | |
|
VOUT(max) (V)
|
22 | |
|
FB
|
(V)
|
1.24 |
|
ISW
|
(A)
|
4 |
|
FSW
|
(k Hz)
|
600/ 1200 |
|
Topology
|
Async. | |
|
Note
|

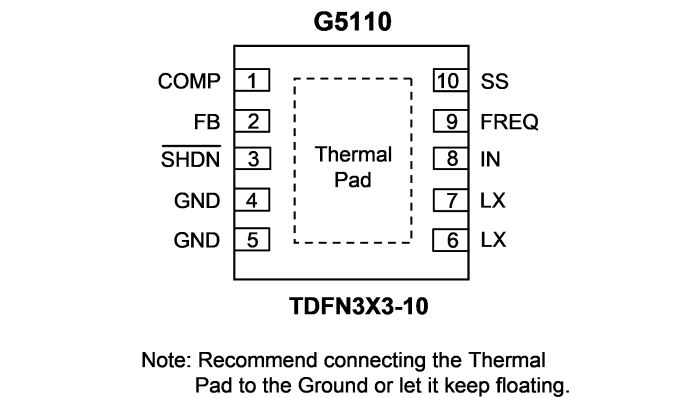

COMP, FB, EN, GND*2, LX*2, IN, FREQ, SS | |
|
Package
|
TDFN3X3-10 | |
|
Datasheet
|
EDS-5110-461-090909-0.6.pdf | |
