G5134TP1U
Low Start-up Synchronous Boost Converter

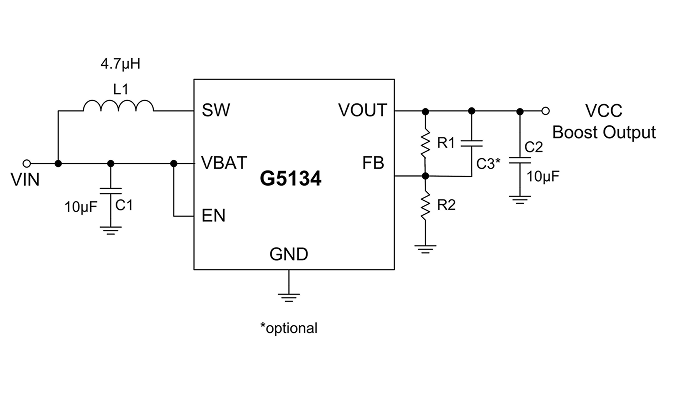

The G5134 is a high efficiency, switch embedded boost converter with low start-up voltage. It features a current mode control for fast transient response without additional compensations. The low start up voltage makes it suitable for 1 to 3 cells battery applications. At low load currents, the converter applies power save mode to maintain high efficiency over a wide output power range. During shutdown, the load is completely disconnected from the battery.
檔案下載
規格表
|
Vin (V)
|
min.
|
0.75 |
|---|---|---|
|
max.
|
5.5 | |
|
VOUT(max) (V)
|
5.5 | |
|
FB
|
(V)
|
0.5 |
|
ISW
|
(A)
|
0.85 |
|
FSW
|
(k Hz)
|
1200 |
|
Topology
|
Sync. | |
|
Note
|

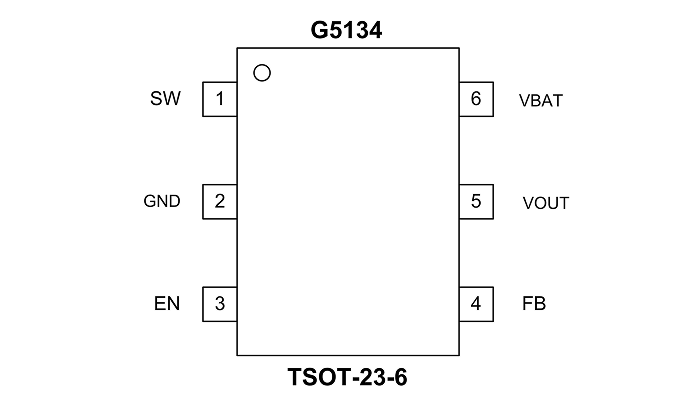

SW, GND, EN, FB, VOUT, VBAT | |
|
Package
|
TSOT-23-6 | |
|
Datasheet
|
EDS-5134-933-180410-0.4.pdf | |
