G516A1Y51U
High-Voltage Protection Power Delivery Switch

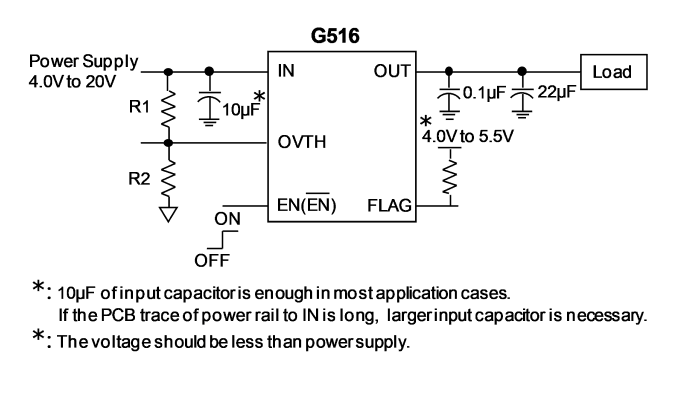

The G516 is an uni-directional switch for self-powered and bus-powered Universal Serial Bus (USB) applications with high input/output absolute rating of 28V.
檔案下載
規格表
|
Vin (V)
|
min.
|
4 |
|---|---|---|
|
max.
|
20 | |
|
RON
|
(mΩ)
|
50 |
|
VOUT Rising
|
(ms)
|
1.5 |
|
IOUT
|
(A)
|
3.7 |
|
Flag
|
Y | |
|
Dis-R
|
(Ω)
|
N |
|
Note
|
UL, IEC, CB, USB TYPE-C | |
|

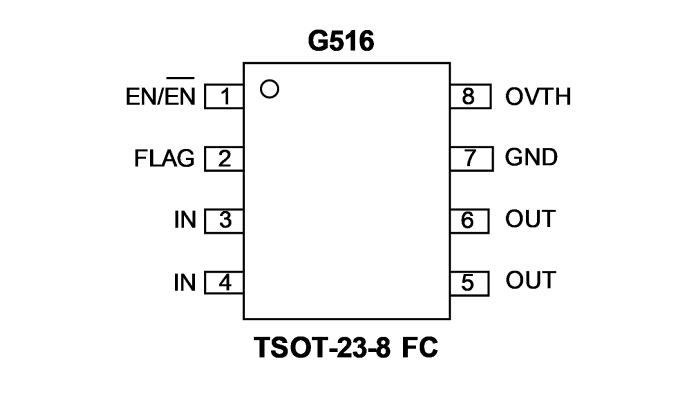

Package
|
TSOT-23-8 | |
|
Datasheet
|
EDS-516-1364-1.2-260122.pdf | |
