G517AH1TP2U
Power Distribution Switch

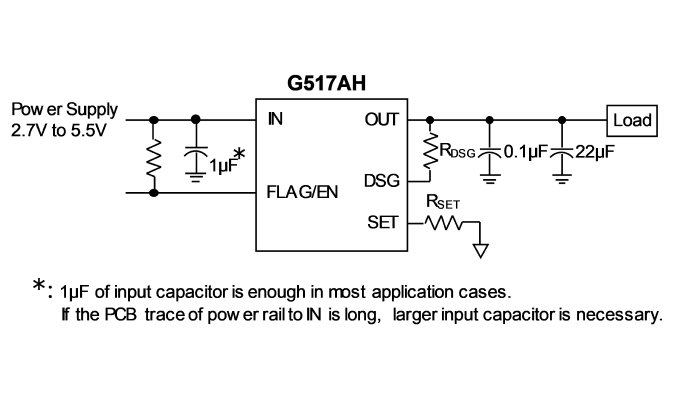

The G517AH is an integrated power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.7 |
|---|---|---|
|
max.
|
5.5 | |
|
RON
|
(mΩ)
|
60 |
|
VOUT Rising
|
(ms)
|
1.5 |
|
IOUT
|
(A)
|
ADJ |
|
Flag
|
Y | |
|
Dis-R
|
(Ω)
|
15 |
|
Note
|
UL, IEC, CB, Fast SCP | |
|

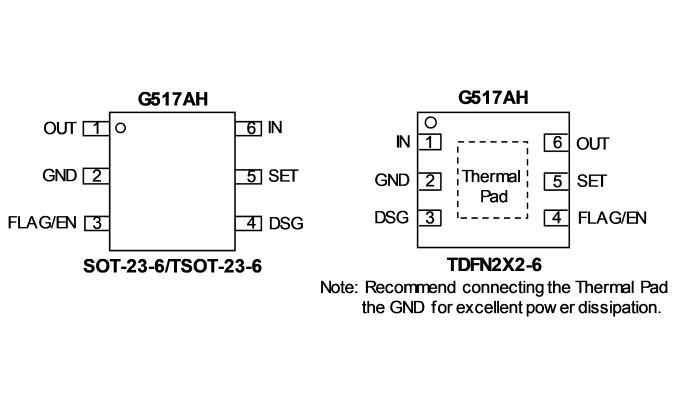

Package
|
TSOT-23-6 | |
|
Datasheet
|
EDS-517AH-1734-250917-0.4.pdf | |
