G5363F11U
7.3X Linear Fan Driver
The G5363 is a high performance linear fan driver designed for use in applications requiring very low dropout voltage up to 0.3A load. The G5363 VO output voltage follows the 7.3 times of ADIM voltage until it reaches VIN voltage. An enable pin further reduces power dissipation while shut down. The G5363 provides excellent regulation over variations in line, load and temperature.
檔案下載
規格表
|
VCC (V)
|
min.
|
12 |
|---|---|---|
|
max.
|
28 | |
|
IOUT
|
(A)
|
0.4 |
|
VOUT
|
(V)
|
7.3XVADIM |
|
SET
|
V[ADIM] | |
|
Dropout
|
(V)
|
0.12 |
|
EN
|
YES | |
|
Note
|
OCP, OTP, SS | |
|
Package
|

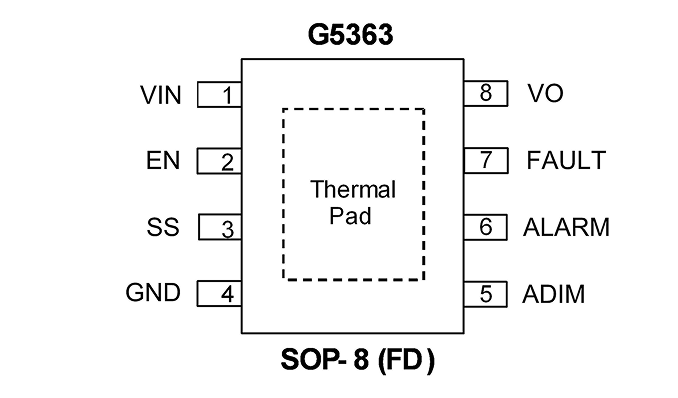

SOP-8(FD) | |
|
Datasheet
|
EDS-5363-1188-150422-0.8.pdf | |
