G5387QV1U
Complete DDR Memory Solution Synchronous Buck PWM Converter, 1.5A LDO, Buffered Reference
The G5387 is intended for DDR2/DDR3/DDR3L/ LPDDR3/DDR4 memory systems. It integrates a synchronous buck PWM converter with a 1.5A sink-source linear regulator and buffered reference.
檔案下載
規格表
|
Vin (V)
|
min.
|
2 |
|---|---|---|
|
max.
|
24 | |
|
IOUT
|
(A)
|
1.5 |
|
FSW
|
(k Hz)
|
ADJ |
|
FB
|
(V)
|
0.75 |
|
HSRON
|
(m Ω)
|
20 |
|
LSRON
|
(m Ω)
|
8.5 |
|
Note
|
-- | |
|

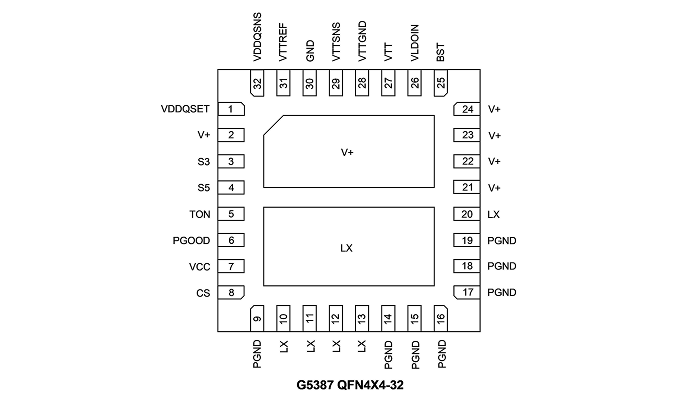

Package
|
QFN4X4-32 | |
|
Datasheet
|
EDS-5387-1169-170519-0.5.pdf | |
