G5409BAS1U
5.5V, 7A Low RDSON Load Switch

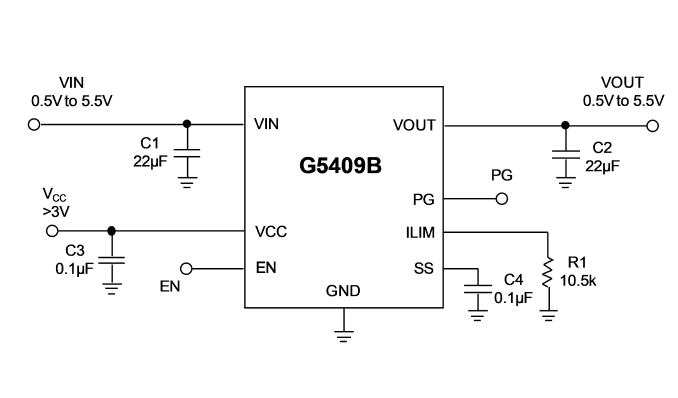

The G5409B is a load switch with a built-in 10m MOSFET. It is designed to provide up to 7A current limit protection covering 0.5V to 5.5V input voltage range. With tiny package, G5409B provides very high efficiency and space-saving solution for solid state driver (SSD), notebook, and other portable devices
檔案下載
規格表
|
Vin (V)
|
min.
|
0.5 |
|---|---|---|
|
max.
|
5.5 | |
|
RON
|
(mΩ)
|
10 |
|
VOUT Rising
|
(ms)
|
ADJ |
|
IOUT
|
(A)
|
ADJ |
|
Flag
|
Y | |
|
Dis-R
|
(Ω)
|
200 |
|
Note
|
IOUT Programmable up to 7A, Need a VBIAS | |
|

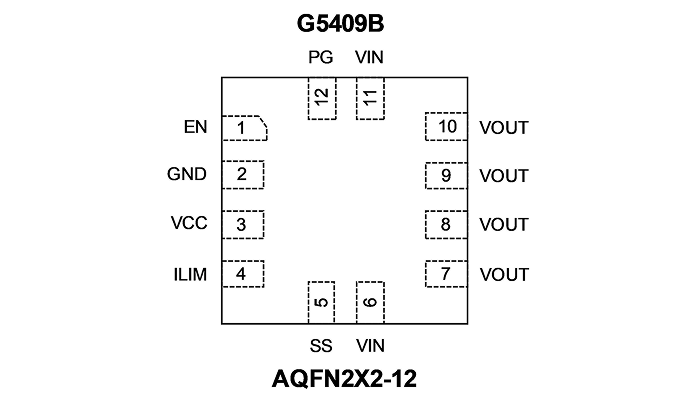

Package
|
AQFN2X2-12 | |
|
Datasheet
|
EDS-5409B-1719-260130-0.6.pdf | |
