G5930NTB1U
Switched Capacitor Voltage Inverter with Shutdown

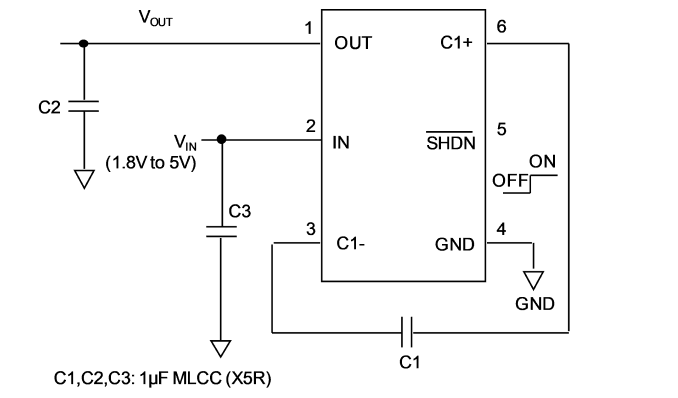

The G5930N is an unregulated charge-pump voltage inverter which may be used to generate a negative supply from positive input. Input voltages ranging from +1.8V to +5V can be inverted into a -1.8V to -5V output supply. The devices are ideal for both battery- powered and board level voltage conversion applications with a typical operating current of 0.7mA at 3.3V supply.
檔案下載
規格表
|
Vin (V)
|
min.
|
1.8 |
|---|---|---|
|
max.
|
5 | |
|
IOUT
|
(mA)
|
60 |
|
FOSC
|
(k Hz)
|
340 |
|
LED
|
CH
|
-- |
|
Positive
|
V[O] (V)
|
-- |
|
Negative
|
V[O] (V)
|
-VIN |
|
Note
|
IN, EN, GND, C-, C+, OUT, Inverting | |
|
Package
|
SOT-23-6 | |
|
Datasheet
|
EDS-5930N-1833-1.0-250116.pdf | |
