G6090RC1U
High Voltage Synchronous Rectified Buck MOSFET Driver
The G6090 is a high frequency, dual MOSFET driver specifically designed to drive two power N-MOSFETs in a synchronous–rectified buck converter topology. The drivers are capable of driving a 3nF load with a fast rising/falling time and a tiny propagation delay. The G6090 also embeds PWM tri-state mode that can turn OFF the UGATE and the LGATE for power state application. This device implements bootstrapping on the upper gates with only a single external capacitor The G6090 supports adaptive shoot though protection, under-voltage lockout (UVLO), and output disable the function in TDFN2X2-8 package.
檔案下載
規格表
|
VCC (V)
|
min.
|
4.5 |
|---|---|---|
|
max.
|
5.5 | |
|
Vin
|
(V)
|
24 |
|
Drive Capability
|
HS(Ω) Source
|
1 |
|
HS(Ω) Sink
|
1 | |
|
LS(Ω) Source
|
1 | |
|
LS(Ω) Sink
|
0.5 | |
|
HSRON
|
(mΩ)
|
-- |
|
LSRON
|
(mΩ)
|
-- |
|
Note
|
HB Pre Gate Driver, Tri-State PWM Input,EN, PWM, UVLO, STP, OTP | |
|

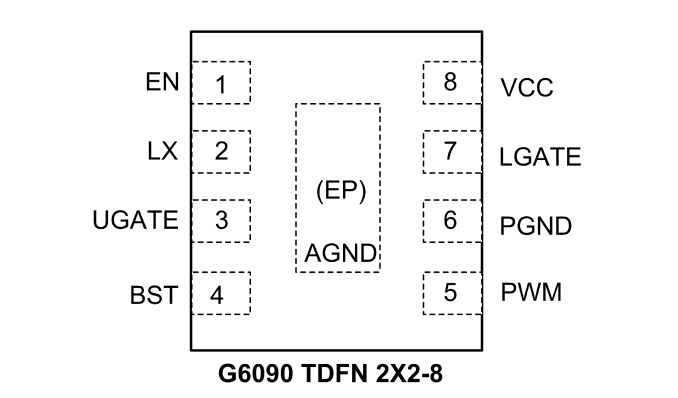

Package
|
TDFN2X2-8 | |
|
Datasheet
|
EDS-6090-1524-210115-0.4.pdf | |
