G632L293TC1U
4-Pin µP Voltage Monitors with Manual Reset Input

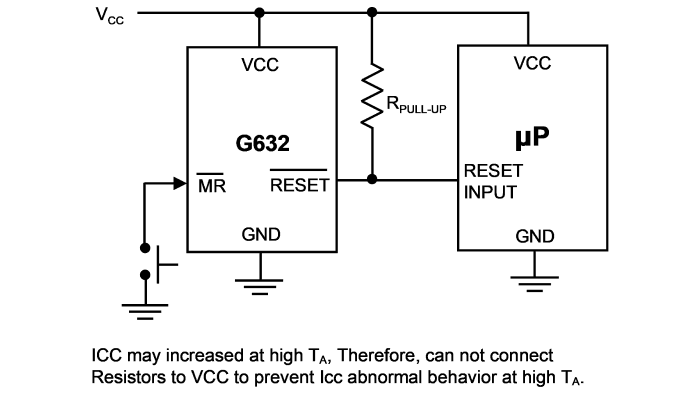

The G632 are microprocessor (µP) supervisory cir-cuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit relia-bility and low cost by eliminating external compo-nents and adjustments when used with +5V, +3.3V, +3.0V- powered circuits. The G632 also provides a debounced manual reset input.
檔案下載
規格表
|
VCC (V)
|
min.
|
1 |
|---|---|---|
|
max.
|
5.5 | |
|
Detecting Voltage
|
(V)
|
2.93 |
|
Manual Input
|
Y | |
|
Delay
|
(ms)
|
360 |
|
Isupply
|
(µA)
|
10 |
|
Note
|
Push-Pull OutputManual Reset Input | |
|
Package
|
SOT-143 | |
|
Datasheet
|
EDS-632-1099-130304-0.1.pdf | |
