G709T1Uf
Resistor-Programmable SOT Temperature Switches

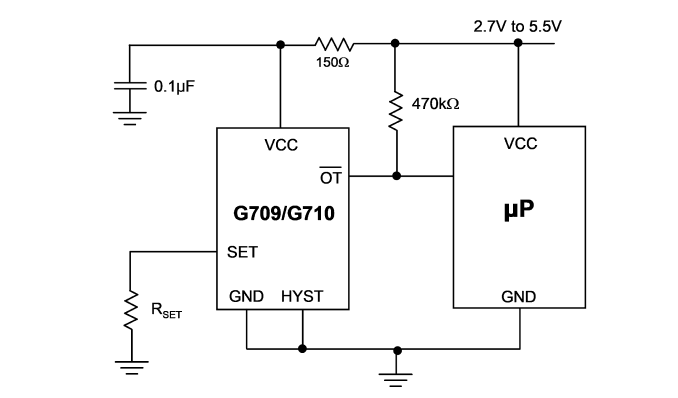

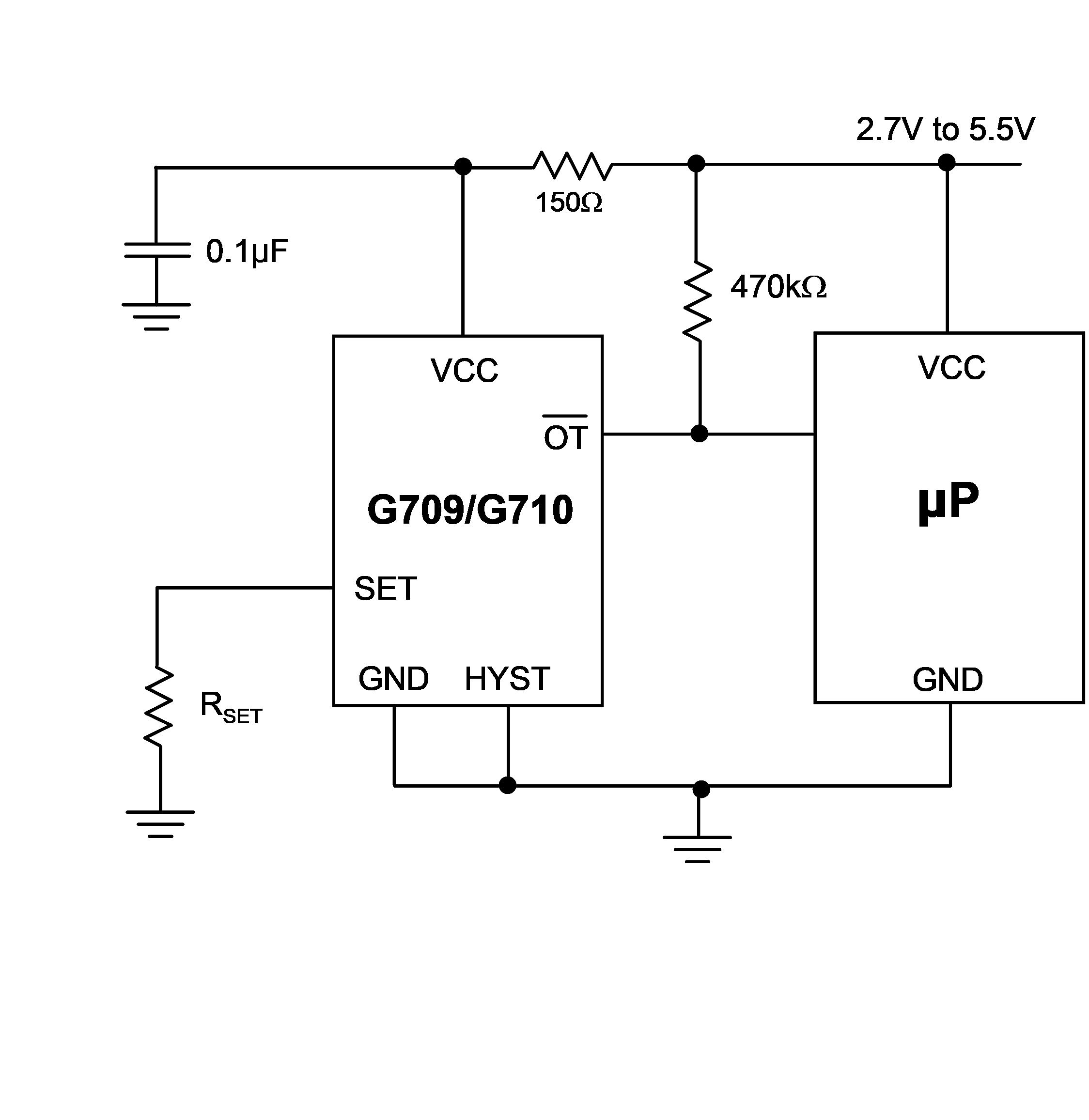

The G709/G710 are fully integrated, resistor programmable temperature switches with thresholds set by an external resistor. They require only one external resistor to set the temperature threshold within a wide 0°C to +125°C temperature range. The G709/G710 provides an open-drain, active low output. These switches operate with a +2.7V to +5.5V single supply while providing a temperature threshold accuracy of 0.5°C (typ) or 3.5°C (max). They typically consume 33µA supply current. Hysteresis is pin selectable to 2°C or 10°C.
檔案下載
規格表
|
VCC (V)
|
min.
|
2.7 |
|---|---|---|
|
max.
|
5.5 | |
|
Sensor Site
|
Local | |
|
Sensor CH
|
1 | |
|
HYST (°C)
|
10 or 2 | |
|
Isupply
|
(µA)
|
33 |
|
Accuracy
|
(°C)
|
-- |
|
Note
|
OT is set by an external resistor | |
|
Package
|
SOT-23-5 | |
|
Datasheet
|
EDS-709(710)-147-2.3-210729.pdf | |
