G751-2P1f
Digital Temperature Sensor and Thermal Watchdog with Two-Wire Interface

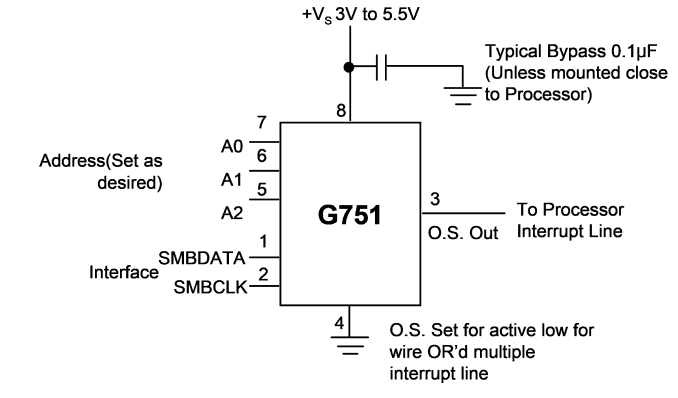

The G751 is a temperature sensor, Delta-Sigma analog-to-digital converter, and digital over- temperature detector with SMBus interface. The host can query the G751 at any time to read temperature. The open-drain Over temperature Shutdown (O.S.) output becomes active when the temperature exceeds a programmable limit. This pin can operate in either “Comparator” or “Interrupt” mode.
檔案下載
規格表
|
VCC (V)
|
min.
|
3 |
|---|---|---|
|
max.
|
5.5 | |
|
Remote
|
CH
|
-- |
|
Local
|
CH
|
1 |
|
Interface
|
SMBus | |
|
Slave Address
|
1001xxx | |
|
Accuracy
|
(°C)
|
±2 |
|
Note
|
9 bits resolution | |
|

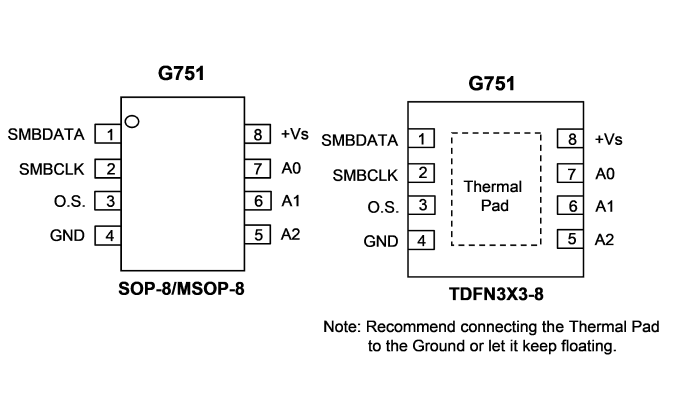

Package
|
SOP-8 | |
|
Datasheet
|
EDS-751-034-3.4-260115.pdf | |
