M2261RB2U
1A, 1.6MHz, COT Synchronous Step-Down Converter

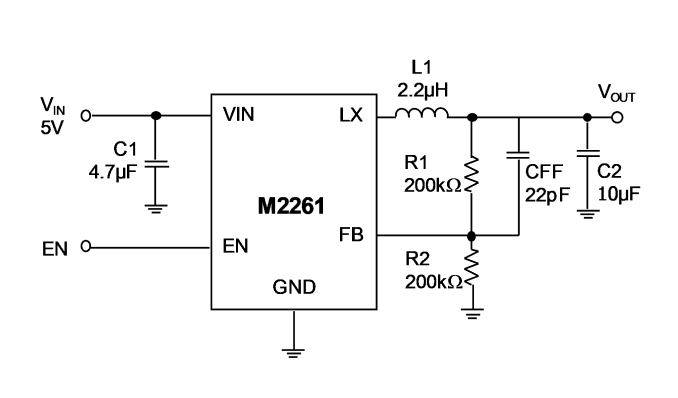

The M2261 is a high efficiency synchronous step-down DC/DC converter with built-in internal power MOSFETs. M2261 provides an adjustable regulated output voltage as low as 0.6V while delivering up to 1A of output current with input voltage from 2.55V to 6V.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.55 |
|---|---|---|
|
max.
|
6 | |
|
IOUT
|
(A)
|
1 |
|
FSW
|
(k Hz)
|
-- |
|
FB
|
(V)
|
0.6 |
|
DMAX
|
(%)
|
-- |
|
IQ
|
(µA)
|
25 |
|
Note
|

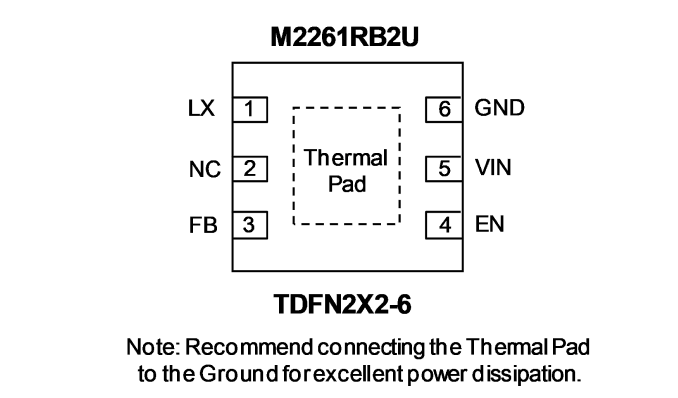

LX,NC,FB,EN,VIN,GND | |
|
Package
|
TDFN2X2-6 | |
|
Datasheet
|
EDS-M2261-1588-191007-0.3.pdf | |
