M2293RC1U
3.5A, 1.5MHz, COT Synchronous Step-Down Converter
The M2293 is a monolithic, step-down, switch mode converter with built-in internal power MOSFETs. It achieves 3.5A continuous output current from a 2.6V to 5.5V input voltage with excellent load and line regulation. The Output voltage can be regulated to 0.9V or 0.8V by setting DVFS high or low. At medium to heavy loads, the switching frequency is 1.5MHz. At light load, the device automatically enters PSM to maintain high efficiency.
檔案下載
規格表
|
Vin (V)
|
min.
|
2.6 |
|---|---|---|
|
max.
|
5.5 | |
|
IOUT
|
(A)
|
3.5 |
|
FSW
|
(k Hz)
|
-- |
|
FB
|
(V)
|
-- |
|
DMAX
|
(%)
|
100 |
|
IQ
|
(µA)
|
27 |
|
Note
|

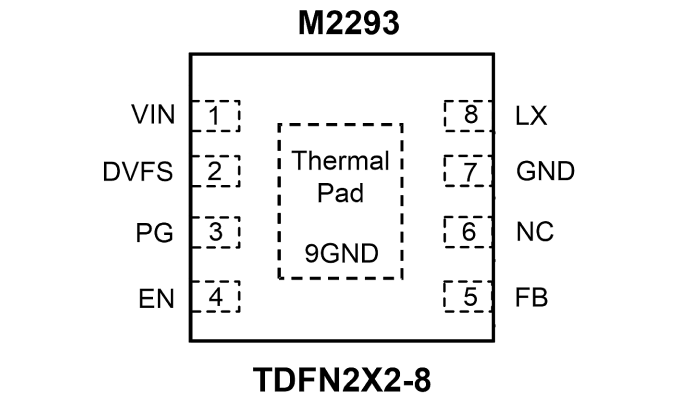

VIN,DVFS,PG,EN,FB,NC,GND,LX | |
|
Package
|
TDFN2X2-8 | |
|
Datasheet
|
EDS-M2293-1676-240830-0.2.pdf | |
