G2035QA1U
DMOS Micro-stepping Driver with Translator and Over-current Protection
The G2035 is a complete micro-stepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and eighth-step modes. Step modes are selectable by MSx logic inputs. It has an output drive capacity of up to 35 V and ±2 A. The G2035 includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes.
檔案下載
規格表
|
VCC (V)
|
min.
|
3 |
|---|---|---|
|
max.
|
5.5 | |
|
VM (V)
|
min.
|
8 |
|
max.
|
35 | |
|
CH
|
2 | |
|
Built-in PI
|
-- | |
|
Exterior Control
|
Y | |
|
nFAULT
|
-- | |
|
Note
|
32 steps Micro-Stepping, 2A SCP/OCP/OTP | |
|

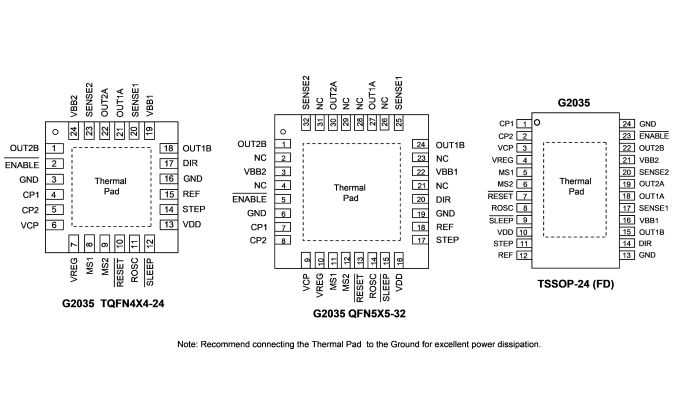

Package
|
QFN5X5-32 | |
|
Datasheet
|
EDS-2035-1469-221220-0.3.pdf | |
