G2066L71U
CLAF-Like Plus (Close Loop Auto Focus-Like Plus)
The G2066 is a single 11-bit or 10-bit DAC with +/-130mA output current source and sinking capability. Designed for linear control of voice coil motors, the G2066 is capable of operating voltage up to 3.3V. The SRC mode highly improves the actuator’s settling time and tolerance coverage compared with conventional LSC(Linear Slope Control) mode. The DAC is controlled via an I2C serial interface that operates DAC by clock rates up to 1MHz.
檔案下載
規格表
|
VCC (V)
|
min.
|
2.4 |
|---|---|---|
|
max.
|
3.6 | |
|
Driver
|
Control
|
Uni/Bi-Direction |
|
DAC
|
10-Bit | |
|
Driving
|
(mA)
|
±130 |
|
Serial Control
|
I2C | |
|
Note
|
CLAF-Like AF with ASRC, Tvib Compensation, 3W SPI,I2C Slave ID*2, VDDIO 1.6V to 3.3V | |
|
Package
|

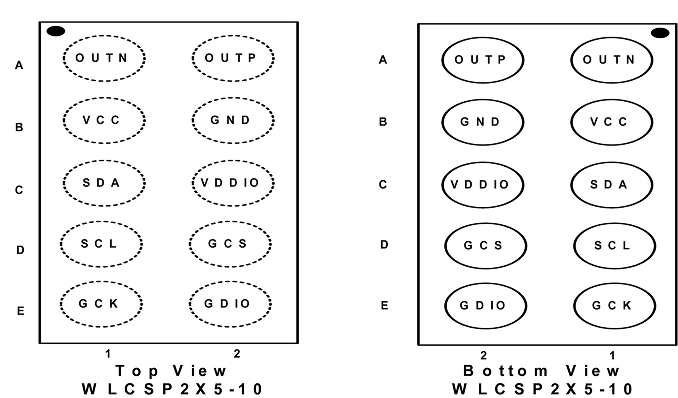

WLCSP2X5-10 | |
|
Datasheet
|
EDS-2066-1661-240619-0.6.pdf | |
