G2277K21U
Single Cell Li-Ion Battery Linear Charger
The G2277 is a standalone linear Li-Ion battery charger with a complete pre-charge, constant-current and constant-voltage charge loop.
檔案下載
規格表
|
Vin (V)
|
min.
|
4.25 |
|---|---|---|
|
max.
|
6.5 | |
|
CCMAX(A)
|
1 | |
|
Pre-Charge(A)
|
ADJ 0.1~1*CC | |
|
CV
|
(V)
|
4.2 |
|
Status
|
LED
|
2 |
|
TEMP
|
TS
|
YES |
|
Note
|
Programmable Pre-Charge、CC, CV, UVLO, OTP | |
|

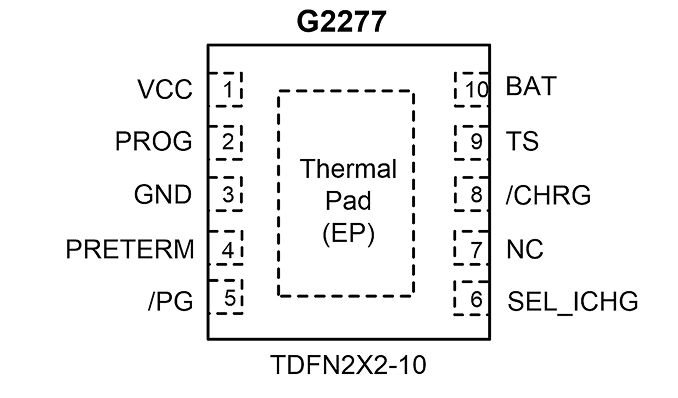

Package
|
TDFN2X2-10 | |
|
Datasheet
|
EDS-2277-1581-230419-0.6.pdf | |
