G2602RQ1U
High Voltage Multi-Topology LED Driver
The G2602 is a current mode DC/DC converter with an internal 2.5A, 40V switch specifically designed to drive LEDs. The G2602 operates as a LED driver in buck, boost and buck-boost mode. The LED current is externally programmable with a 120mV sense resistor. With a 500KHz operating frequency, the external inductor and input/output capacitors can all be small. Dimming can be either analog, PWM, or PWM converting to analog with an exter-nal capacitor.
檔案下載
規格表
|
Vin (V)
|
min.
|
6.5 |
|---|---|---|
|
max.
|
36 | |
|
PFC
|
-- | |
|
Control
|
Mode
|
Current |
|
DIM
|
(k Hz)
|
-- |
|
VISNS
|
(V)
|
0.12 |
|
Internal MOSFET
|
V[DS] (V)
|
36 |
|
Note
|
Digital/Analog Dimming Control, UVP, OCP, OVP, OTP | |
|

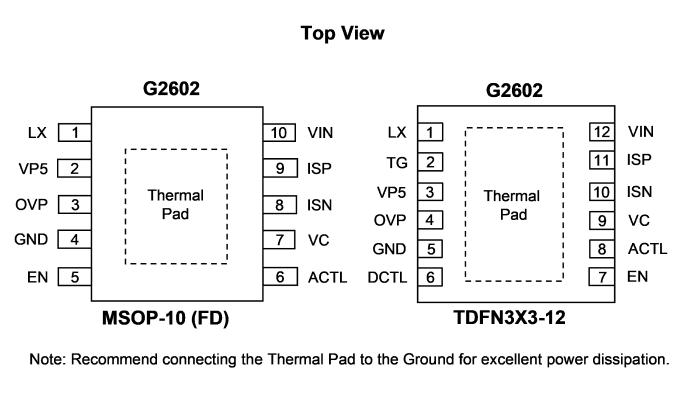

Package
|
TDFN3X3-12 | |
|
Datasheet
|
EDS-2602-754-100920-0 3.pdf | |
