G5334DQT1U

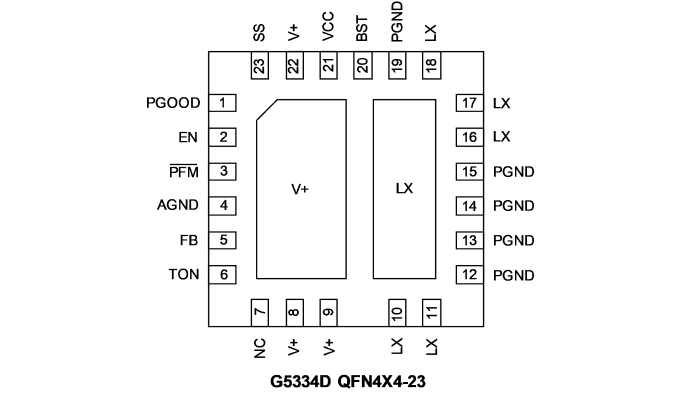

G5334D is a 15A, synchronous DC/DC buck converter with integrated 13m N-channel high-side MOSFET and 6.5m N-channel low-side MOSFET. It uses constant on-time control scheme to handle wide input/output voltage ratios with ease and provides 100ns “instant-on” response to load transients while maintaining a relatively constant switching frequency. The G5334D achieves high efficiency at a reduced cost by eliminating the current-sense resistor found in traditional current-mode PWMs. Single-stage buck conversion allows these devices to directly step down high-voltage batteries for the highest possible efficiency. The G5334D is intended for the power supply of Notebook Computer, or other low-voltage supplies as low as 0.6V. The G5334D is available in QFN4X4-23 package.
