G5416QS1U
Complete DDR Memory Power Solution
The G5416 is intended for DDR2/DDR3/DDR3L/ LPDDR3/DDR4 memory systems. It integrates a synchronous buck PWM converter with a 1.5A sink-source linear regulator and buffered reference.
檔案下載
規格表
|
Vin (V)
|
min.
|
2 |
|---|---|---|
|
max.
|
26 | |
|
IOUT
|
(A)
|
8 |
|
FSW
|
(k Hz)
|
ADJ |
|
FB
|
(V)
|
0.75 |
|
HSRON
|
(m Ω)
|
20 |
|
LSRON
|
(m Ω)
|
8.5 |
|
Note
|
DDR4 with VPP 2.5V/1A,1.5A LDO VTT, 10mA VTTREF, S3, S5, PGOOD, Low IQ, MLCC | |
|
Package
|

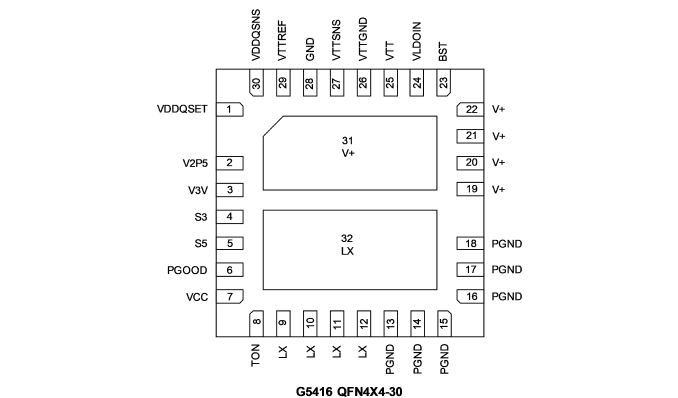

QFN4X4-30 | |
|
Datasheet
|
EDS-5416-1437-1.6-200320.pdf | |
