G718TM1U
Dual Remote Resistor-Programmable Temperature Switches

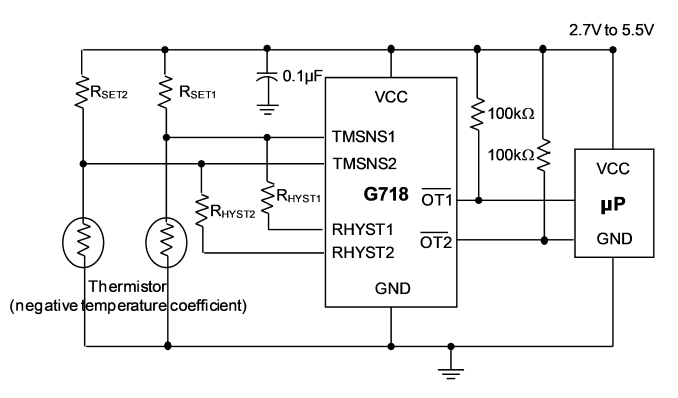

The G718 are fully integrated, resistor programmable dual remote temperature switches. The thresholds are set by external resistors and negative temperature coefficient thermistors. The G718 provides open-drain, active low over-temperature outputs for both sensors. These switches operate with a +2.7V to +5.5V single supply.
檔案下載
規格表
|
VCC (V)
|
min.
|
2.7 |
|---|---|---|
|
max.
|
5.5 | |
|
Sensor Site
|
Remote | |
|
Sensor CH
|
2 | |
|
HYST (°C)
|
Resistor | |
|
Isupply
|
(µA)
|
42 |
|
Accuracy
|
(°C)
|
-- |
|
Note
|
NTC is needed | |
|

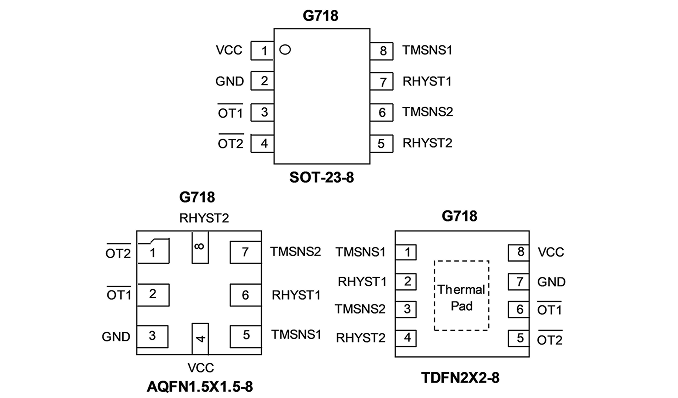

Package
|
SOT-23-8 | |
|
Datasheet
|
EDS-718-616-2.2-260210.pdf | |
