G1562TO1U

Single Rail-to-Rail Operational Amplifiers
The G1562 is a single rail-to-rail input/output operation amplifier with the low power, high voltage swing. Operating on supplies ranging from 4.5V to 20V, while current consuming only 3mA, the G1562 is with high unit-gain bandwidth of 30MHz. The G1562 also provides common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables this amplifier to offer maximum dynamic range at any supply voltage.

Downloads

EDS-1562-491-1.3-110213
Add to compare Add to inquiry
Specifications
VDD (V)
min.
4.5
max.
20
CH
1
IOUT
(mA)
65
S/R
(V/µs)
150
BW
(M Hz)
30
Offset
(mV)
2
Note
Rail-to-Rail Input/Output

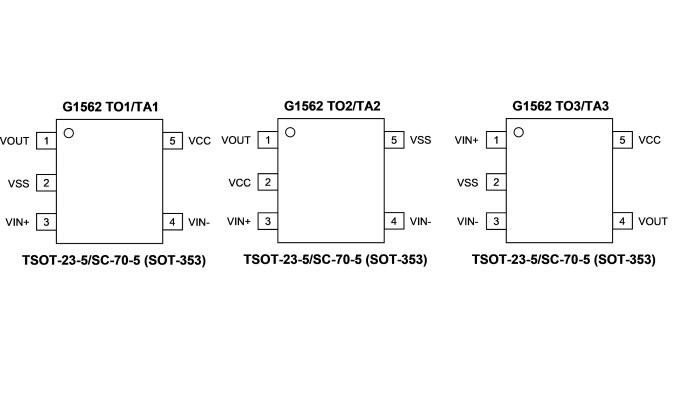

Package
TSOT-23-5
Datasheet
EDS-1562-491-1.3-110213.pdf
