G2028K11U

5+1CH serial input motor driver IC for DSC
G2028 is a 5+1-channel H-Bridge motor drivers IC for the digital camera and so on. It has four full-swing/constant voltage drivers and two full-swing/constant current drivers. G2028 can be operated in serial control mode or partial exterior control mode. When operating in partial exterior control mode, the mode of each CH is fixed by initial serial control setting. When operating in serial control mode, the mode of each driver can be setting by serial control.

Downloads

EDS-2028-1015-120619-0.1
Add to compare Add to inquiry
Specifications
VCC (V)
min.
2.5
max.
6
VM (V)
min.
2.9
max.
6
CH
5+1
Built-in PI
3
Exterior Control
Y
nFAULT
--
Note
CH1~3 : CV/FS,CH4 : CC/CV/FS,CH5 : CC/FS, I2C

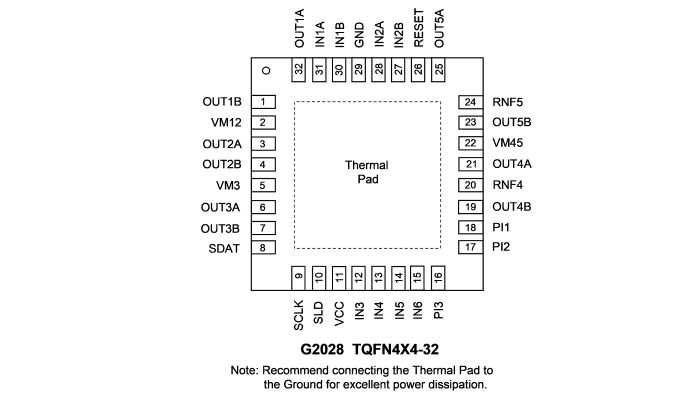

Package
TQFN4X4-32
Datasheet
EDS-2028-1015-120619-0.1.pdf
Application Fields
Motor Drive

Motor Drive

Mechatronic system, mainly composed of motors, mechanical components, controllers, and converters.
