G2176ARB1U

Power -Distribution Switches with Soft Start
The G2176A is a power-distribution switch with some protection functions. The device incorporates an 80m N-channel MOSFET power switch that is controlled by an enable logic pin and has a built-in soft-start control that can be used in application where the inrush current is concerned.

Downloads

EDS-2176A-1767-250430-0.5
Add to compare Add to inquiry
Specifications
Vin (V)
min.
4.5
max.
22
RON
(mΩ)
70
VOUT Rising
(ms)
--
IOUT
(A)
ADJ
Flag
N
Dis-R
(Ω)
950
Note
--

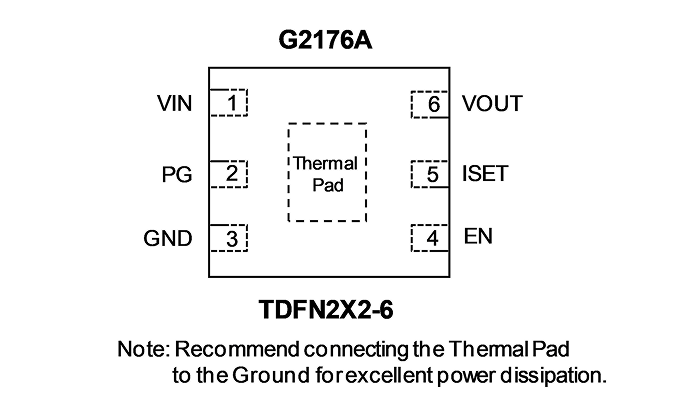

Package
TDFN2X2-6
Datasheet
EDS-2176A-1767-250430-0.5.pdf
Application Fields
Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
