G2263AV1U

9A, 600kHz High Efficiency, Synchronous Boost Converter with Output Disconnect
The G2263 is a high efficiency, synchronous, current-mode, boost converter with output disconnect.

Downloads

EDS-2263-1528-230303-0.6
Add to compare Add to inquiry
Specifications
Vin (V)
min.
2.7
max.
5.5
VOUT(max) (V)
5
FB
(V)
0.8
ISW
(A)
9
FSW
(k Hz)
600
Topology
Sync.
Note

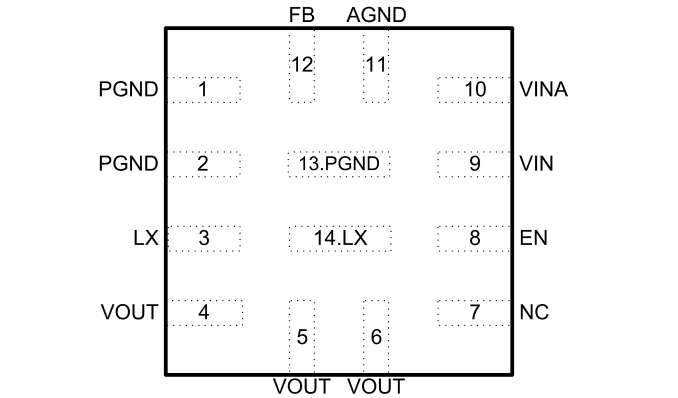

PGND*2, LX, VOUT*2, NC, EN, VIN, VINA, AGND, FB
Package
AQFN2X2-14
Datasheet
EDS-2263-1528-230303-0.6.pdf
Application Fields
Networking

Networking

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Consumer

Consumer

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
