G2280HL1U

10A Fully-Integrated Synchronous Boost Converter
The G2280 is a high efficiency, synchronous, COT, boost converter .The G2280 has wide input voltage range from 2.7V to 12V to support applications with single cell or two cell Lithium batteries. The device has 10A switch current capability and is capable of providing an output voltage up to 12.6V.

Downloads

EDS-2280-1605-241227-0.8
Add to compare Add to inquiry
Specifications
Vin (V)
min.
2.7
max.
12
VOUT(max) (V)
12.6
FB
(V)
1.2
ISW
(A)
11.9
FSW
(k Hz)
600
Topology
Sync.
Note

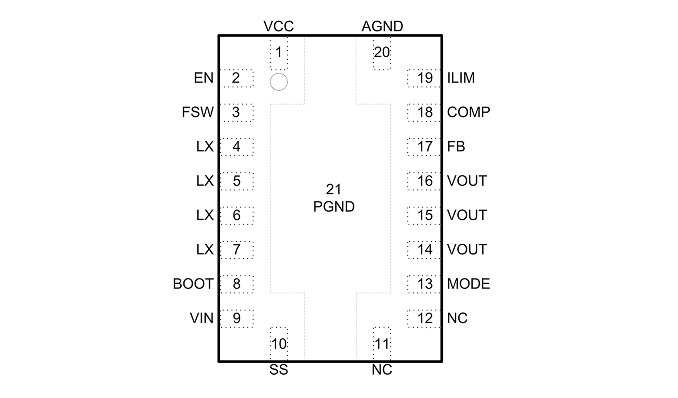

VCC, EN, FSW, LX, BOOT, VIN, SS, MODE, VOUT, FB, COMP, ILIM, AGND, PGND
Package
QFN3.5X4.5-20
Datasheet
EDS-2280-1605-241227-0.8.pdf
Application Fields
Networking

Networking

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Consumer

Consumer

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
