G2281M91D

10A Fully-Integrated Synchronous Boost Converter
The G2281 is a high efficiency, synchronous, COT, boost converter .The G2281 has wide input voltage range from 2.7V to 12V to support applications with single cell or two cell Lithium batteries. The device has 10A switch current capability and is capable of providing an output voltage up to 12.6V.

Downloads

EDS-2281-1633-200731-0.4
Add to compare Add to inquiry
Specifications
Vin (V)
min.
2.7
max.
12
VOUT(max) (V)
12.6
FB
(V)
1.2
ISW
(A)
10
FSW
(k Hz)
600
Topology
Sync.
Note

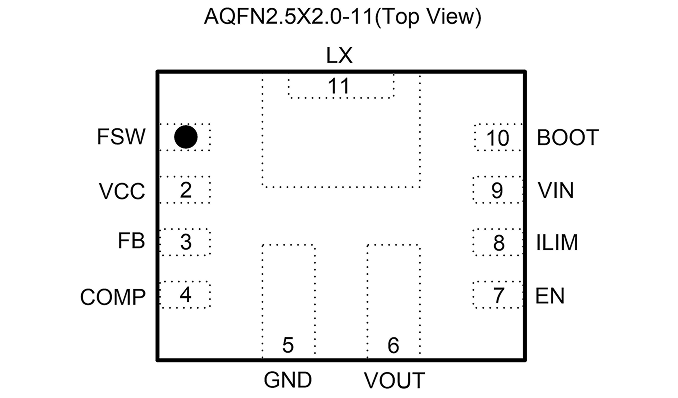

FSW, VCC, FB, COMP, GND, VOUT,EN, ILIM, VIN, BOOT, LX
Package
AQFN2.5X2.0-11
Datasheet
EDS-2281-1633-200731-0.4.pdf
