G5027CRD1D

Single Channel Smart Load Switch

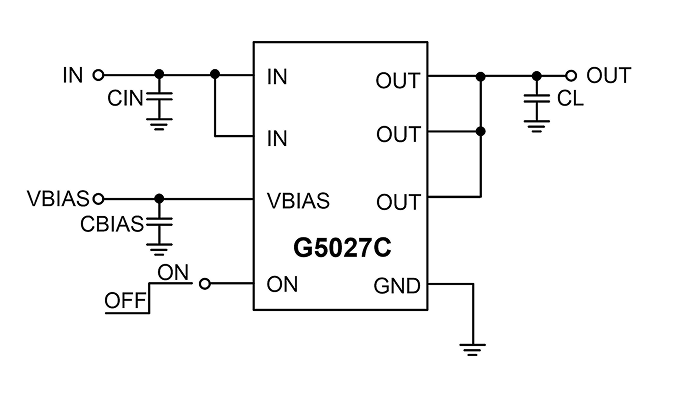

The G5027C is a single channel smart load switch with very low on-resistance in a small package. It contains an n-channel MOSFET for up to VBIAS -1.5V input voltage operation and 6A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control signal through ON pin.

Downloads

EDS-5027C-1548-220908-0.5
Add to compare Add to inquiry
Specifications
Vin (V)
min.
0.7
max.
4
RON
(mΩ)
5.5
VOUT Rising
(ms)
0.01
IOUT
(A)
--
Flag
N
Dis-R
(Ω)
220
Note
10μs ≤ tD + tR≤ 65μs @ VOUT = 1.05V

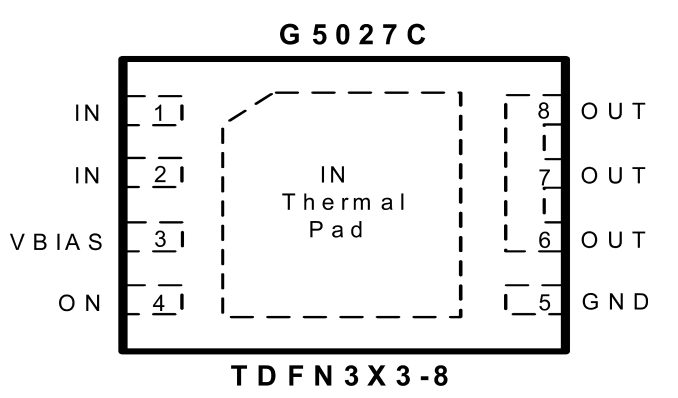

Package
TDFN3X3-8
Datasheet
EDS-5027C-1548-220908-0.5.pdf
Application Fields
Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
