G674L240T1U

Microprocessor Reset IC

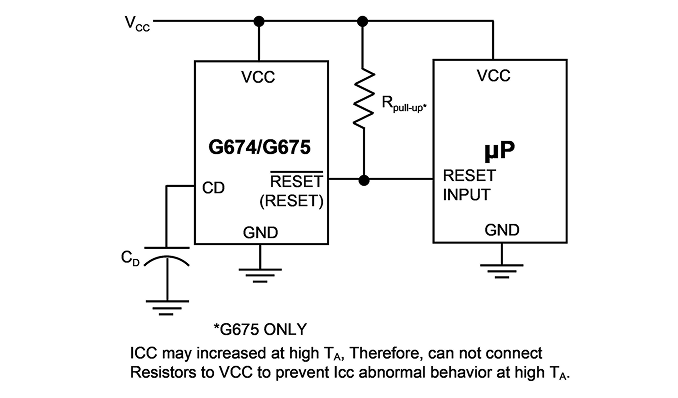

The G674/G675 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost and adjustments when used with +2.5V, +3.0V powered circuits.

Downloads

EDS-674(675)-220-1.3-120410
Add to compare Add to inquiry
Specifications
VCC (V)
min.
0.8
max.
5.5
Detecting Voltage
(V)
2.0/2.2/2.4
ICD source
(µA)
0.09
VTCD
(V)
0.5
Isupply
(µA)
35
Note
G674H/L Push-Pull High/Low OutputG675L Open-Drain OutputTCD (ms) = 6,740 × CD (uF)

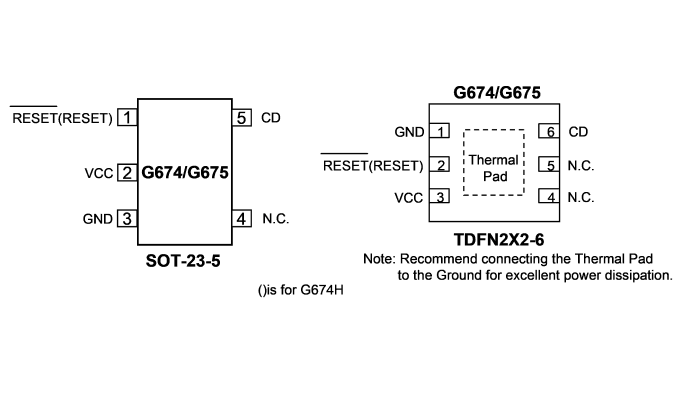

Package
SOT-23-5
Datasheet
EDS-674(675)-220-1.3-120410.pdf
