G753HT11U
High Accuracy Digital Temperature Sensor and Thermal Watchdog with Two-Wire Interface

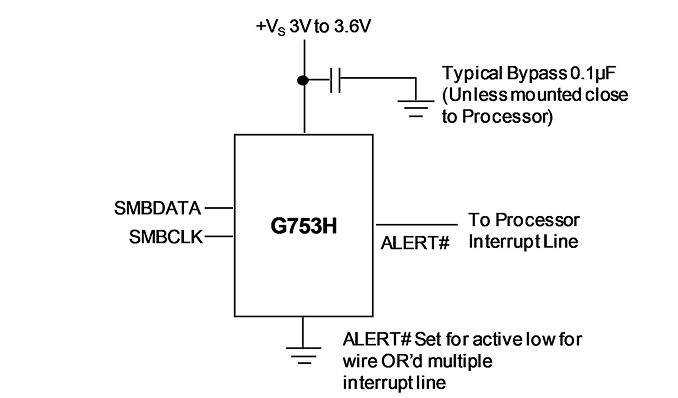

The G753H is a temperature sensor, analog-to-digital converter, and digital over-temperature detector with SMBus interface. The host can query the G753H at any time to read temperature. The open-drain ALERT# output becomes active when the temperature exceeds a programmable limit which initialed by hardware power-on setting. This pin can operate in either “Comparator” or “Interrupt” mode.
Downloads
Specifications
|
VCC (V)
|
min.
|
3 |
|---|---|---|
|
max.
|
3.6 | |
|
Remote
|
CH
|
-- |
|
Local
|
CH
|
1 |
|
Interface
|
SMBus | |
|
Slave Address
|
1001000 | |
|
Accuracy
|
(°C)
|
±1 ±3 |
|
Note
|
-10°C to 80°C ±1°C (max)-55°C to 125°C ±3°C (max) | |
|

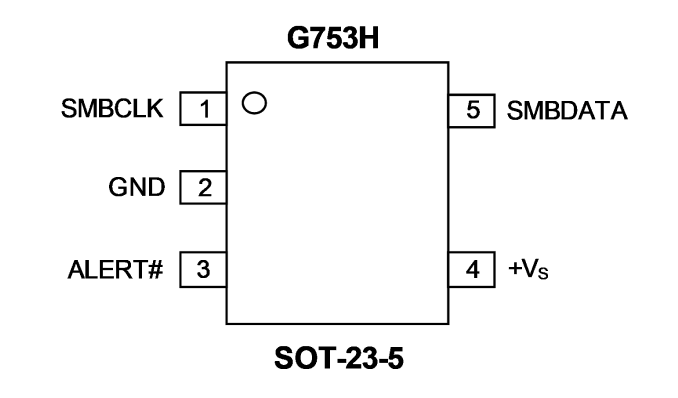

Package
|
SOT-23-5 | |
|
Datasheet
|
EDS-753H-1723-210607-0.1.pdf | |
