G8200RP1U
PMIC for Electronic Paper Display
The G8200 is a single-chip power management IC (PMIC) for electronic paper displays EPD that pro-vides source- and gate-driver power supplies, a VCOM amplifier, and a temperature sensor. All rails are adjustable through the I2C interface to accom-modate specific panel requirements.
Specifications
|
Vin (V)
|
min.
|
3 |
|---|---|---|
|
max.
|
5.5 | |
|
DCDC
|
CH
|
2 |
|
LDO
|
CH
|
2 |
|
SW
|
CH
|
-- |
|
CHG
|
(A)
|
-- |
|
Control
|
Interface
|
I2,EN |
|
Note
|
VPOS/VNEG=300mATracking VPOS+VNEG= ±50mV2*CP for VGH=70mA, VGL=70mA1*OPA, DC_VCOM with OTP, Built-in XONThermistor Monitoring, UVP/SCP/OCP/OTP/UVLO | |
|

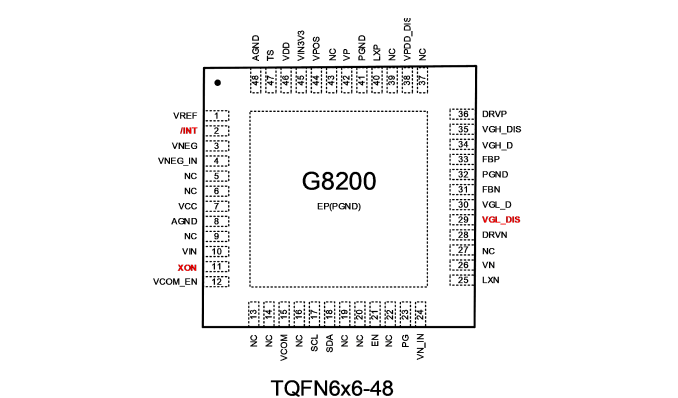

Package
|
TQFN6X6-48 | |
|
Datasheet
|
-- | |
