M2105BF11U
Dual Bootstrapped 20V MOSFET Driver
The M2105 is a high frequency, synchronous rectified, single phase dual MOSFET driver. Each of the drivers is capable of driving a 3000pF load with fast rising/falling time and fast propagation delay. This device implements bootstrap diode on the upper gate with only a single external capacitor. This reduced implementation complexity and allows the use of higer performance, cost effective, N-MOSFETs. Adaptive shoot through protection is integrated to prevent both MOSFETs from conducting simultaneously.
Downloads
Specifications
|
VCC (V)
|
min.
|
4.5 |
|---|---|---|
|
max.
|
22 | |
|
Vin
|
(V)
|
24 |
|
Drive Capability
|
HS(Ω) Source
|
2A |
|
HS(Ω) Sink
|
1.4 | |
|
LS(Ω) Source
|
2A | |
|
LS(Ω) Sink
|
1.4 | |
|
HSRON
|
(mΩ)
|
-- |
|
LSRON
|
(mΩ)
|
-- |
|
Note
|
HB Pre Gate Driver, Tri-State PWM Input,EN, PWM, UVLO, STP, OTP, ADJ Deadtime | |
|

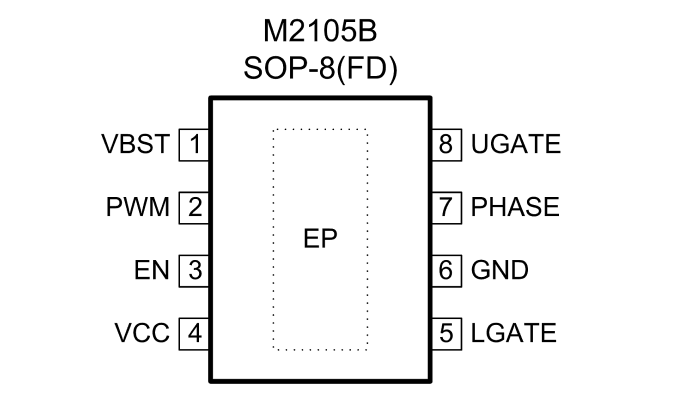

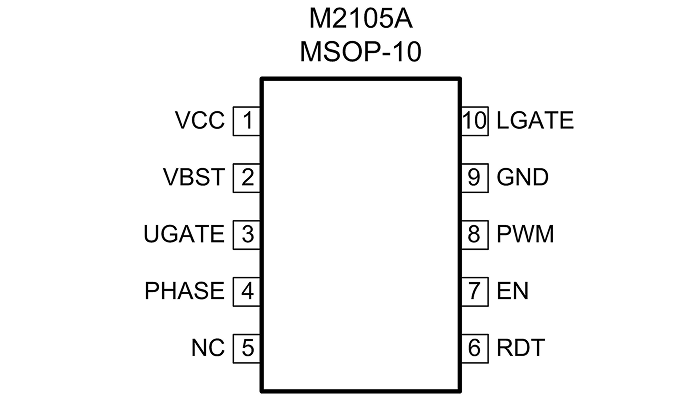

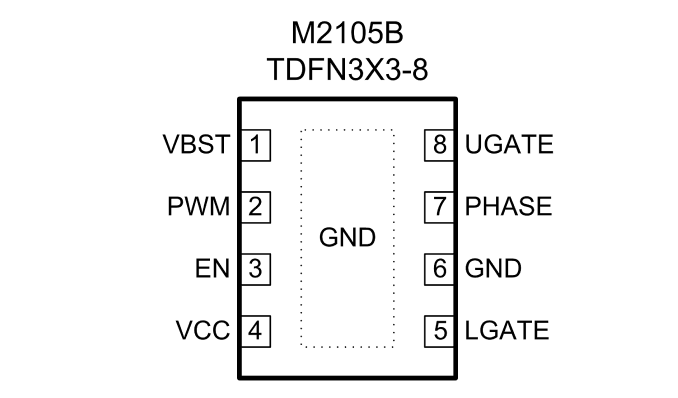

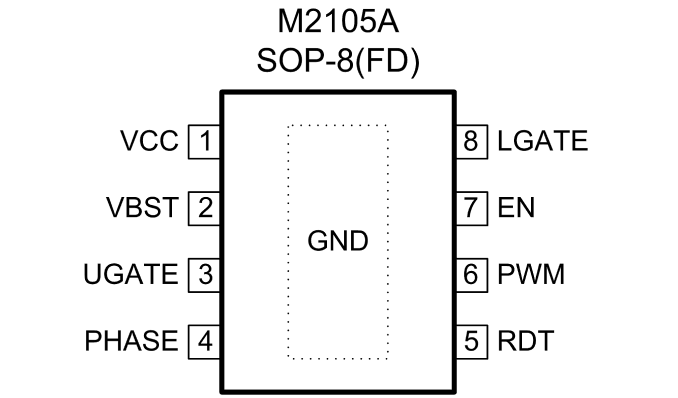

Package
|
SOP-8(FD) | |
|
Datasheet
|
EDS-M2105-1521-180814-0.4.pdf | |
