G1625RD1U

7-bit Programmable VCOM Reference
The G1625 provides a programmable reference voltage for TFT-LCD panel VCOM adjustment. A 7-bit digital-to-analog converter (DAC) detects current from an external resistor-divider to create the VCOM reference voltage. This voltage is used as the input to a high current drive voltage buffer.

Downloads

EDS-1625-1068-160802-0.4
Add to compare Add to inquiry
Specifications
VDD (V)
min.
7
max.
18
CH
V[r] +V[com]
1
IOUT (mA) Vr ,Vcom
100
S/R (V/µs) Vr ,Vcom
23
BW (MHz) Vr ,Vcom
20
ISC (mA) Vr ,Vcom
270
Note
SMBus, Rail-to-Rail Output

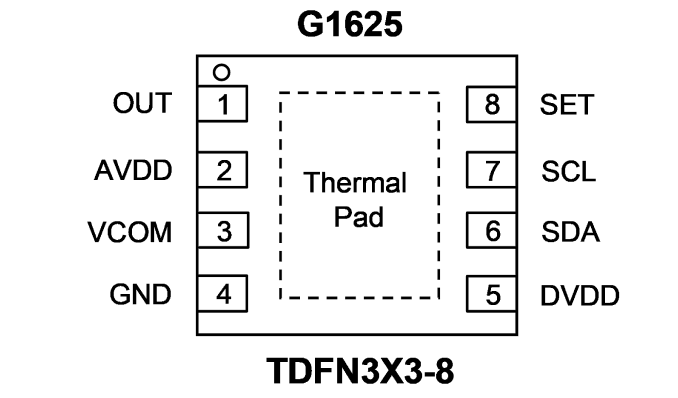

Package
TDFN3X3-8
Datasheet
EDS-1625-1068-160802-0.4.pdf
