G2195HP1U
Signage PMIC for Electronic Paper Display
The G2195 is a single-chip power management IC (PMIC) for large-size electronic paper displays (EPD) that provides source- and gate-driver power supplies, a VCOM bias, and a temperature sensor. All rails are adjustable through the I²C interface to accommodate specific panel requirements.
Downloads
Specifications
|
Vin (V)
|
min.
|
10.8 |
|---|---|---|
|
max.
|
13.2 | |
|
DCDC
|
CH
|
12 |
|
LDO
|
CH
|
-- |
|
SW
|
CH
|
-- |
|
CHG
|
(A)
|
-- |
|
Control
|
Interface
|
I2C, EN, PS |
|
Note
|
10-CH Controller, 2-CH ConverterVPOS1~3/VNEG1~3=1.6ATracking VPOS1/2/3+VNEG1/2/3=±500mVVGH1/VGH2/VGL=200mAVCOMH/VCOML/DCVCOM=2.5ASW_CTL*2 for DC_VCOM & AC_VCOM NTC Monitoring, UVP/SCP/OCP/OTP/UVLO | |
|
Package
|

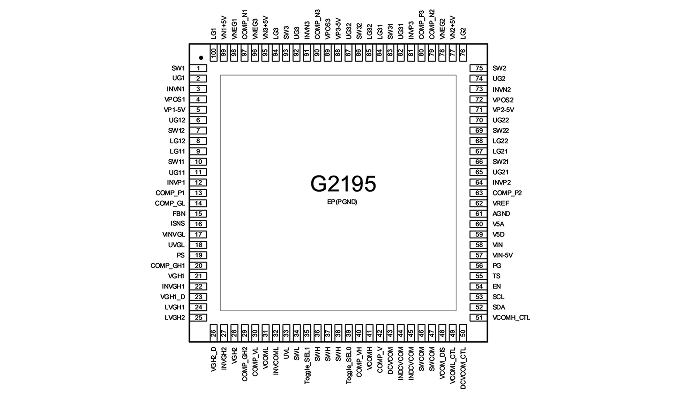

QFN12X12-100 | |
|
Datasheet
|
EDS-2195-1849-1.0-260331.pdf | |
